| WIRELESS INTERFACES |
| CERTIFICATIONS |
Visit https://www.digi.com/resources/certifications for latest certifications |
| LTE – ANZ/LATAM (L9) |
LTE-Advanced Cat 6: 700(B28)/850(B5,B18,B19)/900(B8)/1500(B21)/1800(B3)/1900(B39)/2100(B1)/
2600(B7,B38)/2300(B40)/2500(B41)
3G HSPA+: 800/850/900/1700/2100 MHz
Transfer rate (max): 300 Mbps down, 50 Mbps up
GNSS: 30 channels (16 GPS, 14 GLONASS) simultaneous tracking |
| LTE – NORTH AMERICA/EMEA (M8) |
LTE-Advanced Cat 6: 700(B12,B13,B29)/800(B20,B26)/850(B5)/900(B8)/AWS(B4)/1800(B3)/1900(B2,B25)/
2100(B1)/2300(B30)/2500(B41)/2600(B7)
3G HSPA+: 850/900/AWS/1800/1900/2100 MHz
Transfer rate (max): 300 Mbps down, 50 Mbps up
GNSS: 30 channels (16 GPS, 14 GLONASS) simultaneous tracking |
| LTE – NORTH AMERICA (M5) |
LTE Cat 4: 700(B12,13)/850(B5)/AWS(B4)/1900(B2)
3G HSPA+: 850/1900 MHz
Transfer rate (max): 150 Mbps down, 50 Mbps up |
| LTE – EMEA/APAC (M7) |
LTE Cat 4: 800(B20)/900(B8)/1800(B3)/2100(B1)/2600(B7)
HSPA: 900/2100 MHz
EDGE: 900/1800 MHz
Transfer rate (max): 150 Mbps down, 50 Mbps up |
| LTE 450 – EMEA/APAC (M2) |
LTE Cat 3: 450(B31)/800(B20)/1800(B3)/2600 (B7)
HSPA+: 900/2100 MHz
EDGE: 900/1800 MHz
Transfer rate (max): 100 Mbps down, 50 Mbps up |
| GLOBAL HSPA+ (U9) |
3G HSPA+: 850/900/1700AWS/1900/2100 MHz
2G EDGE/GPRS: 850/900/1800/1900 MHz
Transfer rate (max): 21 Mbps down, 5.76 Mbps up |
| CDMA EV–DO 450 MHZ – EMEA (D5) |
3G EVDO Rev B: 450 MHz
2G 1XRTT: 450 MHz
Transfer rate (max): 14.7 Mbps down, 5.4 Mbps up |
| CONNECTORS |
(2) 50 Ω SMA (center pin: female) |
| SIM SLOTS |
(2) Mini-SIM (2FF) |
| SIM SECURITY |
Screw-down SIM cover |
| GNSS (SELECT MODELS) |
Protocol NMEA 0183 V3.0
Acquisition Time Hot Start 1 s; Warm Start 29 s; Cold Start 32 s
Accuracy Horizontal: < 2 m(50%), < 5 m(90%); Altitude: < 4 m (50%), < 8 m (90%); Velocity: < 0.2 m/s |
| SOFTWARE & MANAGEMENT |
| REMOTE MANAGEMENT |
Digi Remote Manager® (cloud based); SNMP v1/v2c/v3 (user installed/managed) |
| LOCAL MANAGEMENT |
WebUI (HTTP/HTTPS); CLI (Telnet, SSH, SMS) |
| MANAGEMENT/ TROUBLESHOOTING TOOLS |
FTP, SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog and SMTP; NTP/SNTP |
| WIRED INTERFACES |
| PORTS |
(2) RJ-45; 10/100 Mbps (auto-sensing) |
| PORTS |
(1) DB-9; DCE |
| STANDARD |
RS-232/422/485 |
| SIGNAL SUPPORT |
TXD, RXD, RTS, CTS, DTR, DCD, DSR, RI |
| FLOW CONTROL |
Software (XON/XOFF), hardware supported |
| CONNECTOR |
5-pin screw down terminal block |
| DIGITAL |
0-30 VDC, 200 mA max.; (2) I/O, software selectable |
| ANALOG |
(1) analog I/O; 4-20 mA or 0-10 V, software selectable; 12 bit resolution |
| PORTS |
(1) USB 2.0 Type A |
| PHYSICAL |

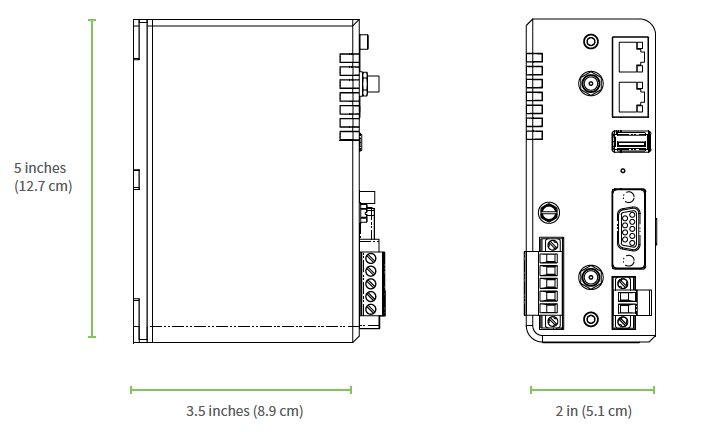

| DIMENSIONS (L X W X H) |
12.7 cm x 8.9 cm x 5.1 cm (5 in x 3.5 in x 2 in) |
| WEIGHT |
.5 kg (1.1 lb.) |
| STATUS LEDS |
Power, service, WWAN, 3x signal strength, user programmable |
| ENCLOSURE/RATING |
Aluminum / IP30 |
| MOUNTING |
DIN rail mount included |
| POWER REQUIREMENTS |
| POWER INPUT |
9 – 30 VDC, 18 W min power source required |
| POWER CONNECTOR |
Screw down removable terminal block |
| POWER CONSUMPTION |
4 W typical (Idle); 12 W typical (Peak Tx/Rx) |
| ENVIRONMENTAL |
| HAZARDOUS (CLASS 1 DIV 2) |
Yes |
| OPERATING TEMPERATURE |
-34° C to 74° C (-29° F to 165° F); reduced cellular performance may occur above 60° C (140° F) |
| STORAGE TEMPERATURE |
-40° C to 85° C (-40° F to 185° F) |
| ETHERNET ISOLATION |
1.5 kV RMS |
| SERIAL PORT PROTECTION (ESD) |
15 kV |
| RELATIVE HUMIDITY |
5% to 95% (non-condensing) |
| APPROVALS |
| CELLULAR |
PTCRB |
| SAFETY |
Hazardous locations: ANSI/ISA-12.12.01-2015, CAN/CSA C22.2 NO.213-15
Ordinary locations: UL 60950-1, 2nd Edition, 2014-10-14; UL 62368: 2014, 2nd Edition
ATEX standards: Protection method  II 3 G Ex nA IIC T4 Gc
EN 60079-0:2012+A11:2013, EN 60079-15:2010, DEMKO 15 ATEX 1574X Rev. 1 |
| IECEX STANDARDS |
US/UL/ExTR17.0077/00 |
| EMISSIONS/IMMUNITY |
CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55022 Class B |
| WARRANTY |
| PRODUCT WARRANTY |
3-year* |
