WIRELESS INTERFACES |
CERTIFICATIONS** |
Visit product certifications for latest approvals and updates |
FIRSTNET CAPABLE™ LTE-ADVANCED CAT 7 |
LTE-Advanced Cat 7 — FDD: B2, B4, B5, B7, B12, B13, B14 FirstNet®, B25, B26, B66, B71; TDD: B41, B42, B43, B48;
WCDMA: B2, B4, B5;
GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS |
LTE CAT 4 GLOBAL (SELECT REGIONS/CARRIERS*) |
LTE Cat 4 — FDD: B1, B2, B3, B4, B5, B7, B12, B13, B18, B19, B20, B25, B26, B28; TDD: B38, B39, B40, B41; WCDMA: B1, B2, B4, B5, B6, B8, B19;
GSM: B2, B3, B5, B8;
GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS |
LTE CAT 4 AU/NZ |
LTE Cat 4 — FDD: B1, B3, B5, B7, B8, B18, B19, B21, B28; TDD: B38, B39, B40, B41;
3G: B1, B5, B6, B8, B9, B19;
GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS |
CONNECTORS |
(3) 50 Ω SMA (2x cellular, 1x GNSS); center pin: female |
SIM SLOTS |
(2) Mini-SIM (2FF) |
SIM SECURITY |
Screw-down SIM cover |
GNSS |
Protocol NMEA 0183 V3.0
Acquisition Time Hot Start 1 s; Warm Start 29 s; Cold Start 32 s
Accuracy Horizontal: < 2 m (50%), < 5 m (90%); Altitude: < 4 m (50%), < 8 m (90%); Velocity: < 0.2 m/s |
SOFTWARE & MANAGEMENT* |
REMOTE MANAGEMENT |
Digi Remote Manager (cloud based); SNMP v1/v2c/v3 (user installed/managed), SMS |
LOCAL MANAGEMENT |
WebUI (HTTP/HTTPS); CLI (Telnet, SSH, Serial) |
MANAGEMENT/ TROUBLESHOOTING TOOLS |
FTP, SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog and SMTP; NTP/SNTP |
WIRED INTERFACES |
PORTS |
(2) RJ-45; 10/100 Mbps (auto-sensing) |
PORTS |
(1) DB-9; DCE |
STANDARD |
RS-232/422/485 |
SIGNAL SUPPORT |
TXD, RXD, RTS, CTS, DTR, DCD, DSR, RI |
FLOW CONTROL |
Software (XON/XOFF), hardware supported |

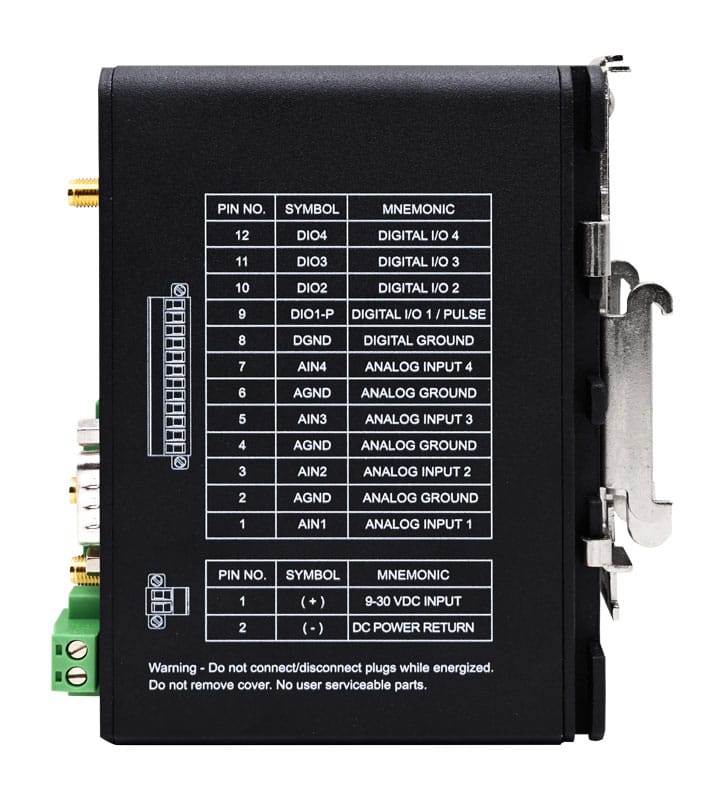

CONNECTOR |
12-pin screw down terminal block |
DIGITAL |
0-30 VDC, 200 mA max.; (4) I/O, software-selectable; pulse counter input |
ANALOG |
(4) analog I/O; 4-20 mA or 0-10 V, software-selectable; 12-bit resolution |
PORTS |
(1) USB 2.0 Type A; 5 V 500 mA max |
PHYSICAL |

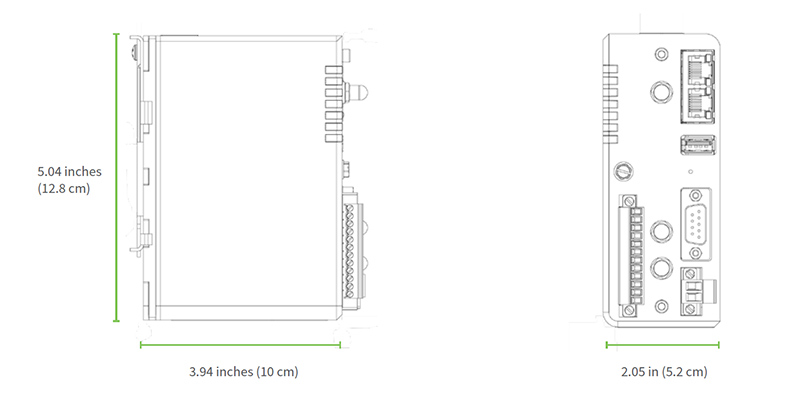

DIMENSIONS (L X W X H) |
12.8 cm x 10 cm x 5.2 cm (5.04 in x 3.94 in x 2.05 in) |
WEIGHT |
0.5 kg (1.1 lb) |
STATUS LEDS |
Signal Strength (5), LTE, Power |
ENCLOSURE/RATING |
Aluminum / IP30 |

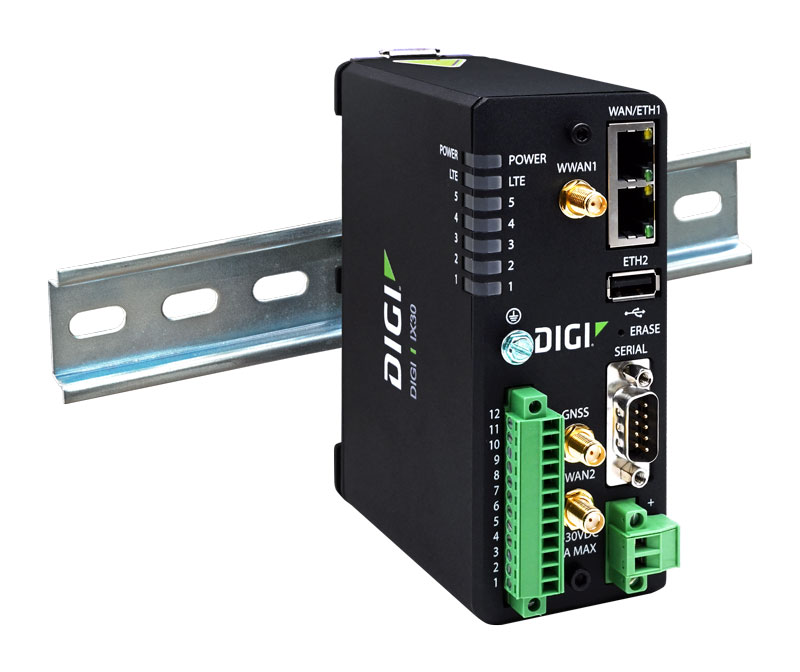

MOUNTING |
DIN rail mount |
POWER REQUIREMENTS |
POWER INPUT |
9 – 30 VDC, reverse polarity protection, 18 W min power source required |
POWER CONNECTOR |
Screw down removable terminal block |
POWER CONSUMPTION |
1.5 W (light traffic flow), 3.5 W (peak data transmission); 1 W (low power mode, idle traffic, no serial/no Ethernet WAN) |
ENVIRONMENTAL |
HAZARDOUS (CLASS 1 DIV 2) |
Yes |
OPERATING TEMPERATURE |
−34 °C to 74 °C (−29 °F to 165 °F); reduced cellular performance may occur above 60 °C (140 °F) |
STORAGE TEMPERATURE |
−40 °C to 85 °C (−40 °F to 185 °F) |
ETHERNET ISOLATION |
1.5 kV RMS |
SERIAL PORT PROTECTION (ESD) |
15 kV |
RELATIVE HUMIDITY |
5% to 95% (non-condensing) |
APPROVALS* |
CELLULAR |
IX30-00P7: PTCRB, Verizon, T-Mobile, AT&T, FirstNet Capable™; IX30-00G4: CE, RED, UKCA |
SAFETY |
Hazardous locations: ANSI/ISA-12.12.01-2015, CAN/CSA C22.2 NO.213-15;
Ordinary locations: UL 62368-1, 2nd Edition, 2014-10-14; UL 62368: 2014, 2nd Edition;
ATEX standards: Protection method II 3 G Ex nA IIC T4 Gc;
EN 60079-0:2012+A11:2013, EN 60079-15:2010, DEMKO 15 ATEX 1574X Rev. 1 |
IECEX STANDARDS |
US/UL/ExTR17.0077/00 |
EMISSIONS/IMMUNITY |
CE, RED, FCC Part 15 Class B, ICES-003, AS/NZS CISPR 32 |
ENVIRONMENTAL |
RoHS3 |
WARRANTY*** |
PRODUCT WARRANTY |
1-year |
