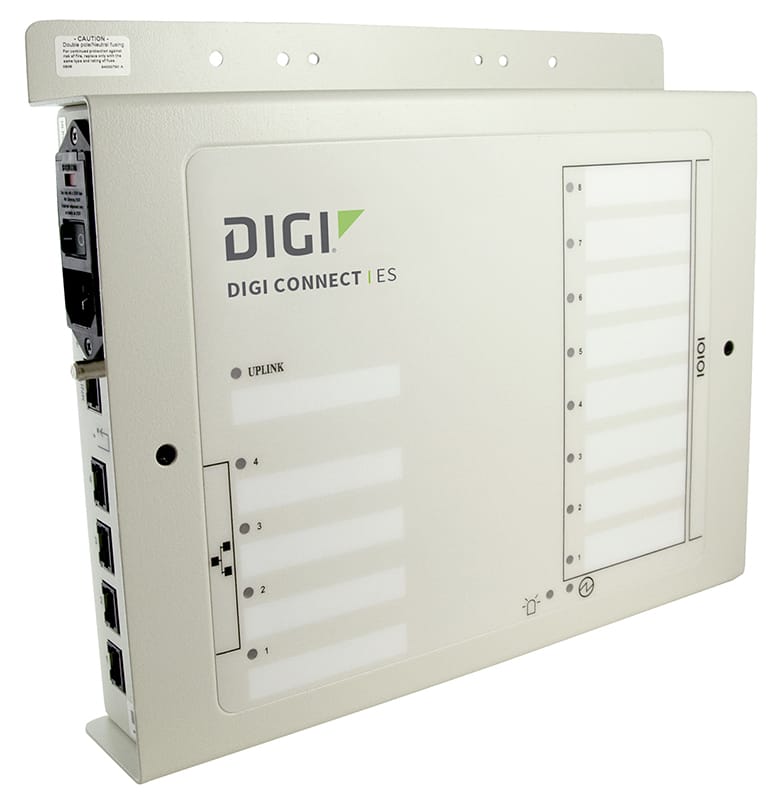

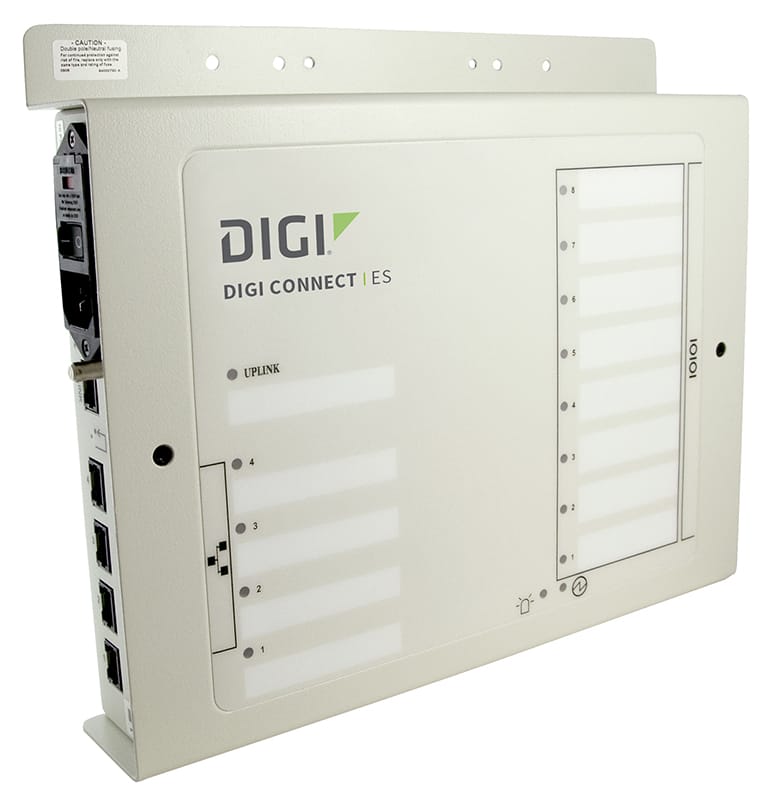

Digi Connect ES (Extended Safety)

Extended safety terminal server designed for serial over Ethernet applications that require isolation on and between ports


  • 4/8-port RS-232 serial-to-network connectivity
  • IEC 60601 3rd Edition compliant
  • Galvanic isolation on all ports
  • Wall mountable
  • Patented Digi RealPort® technology provideslocal serial port functionality
  • RealPort with encryption available for SSL-based protection for additional security
  • Ports may be shared between multiple hostsrunning different operating systems

Digi Connect® ES provides serial over Ethernet connectivity. It is IEC 60601 3rd Edition compliant and consists of four or eight galvanic isolated RS-232 serial ports, with a 10/100 Mbps network interface and optional Ethernet switch. Digi Connect ES is used in applications that provide Ethernet connections from serial devices to the central data management system.

Galvanic isolation provides extended electrical safety. There is no electrical path for current to earth ground, ensuring no electrical shock when making physical contact with the Digi Connect ES. There is no electrical path from port to port, ensuring a ground fault will not affect the operation of the Digi Connect ES or the operation of any device connected to it.

Digi's patented RealPort® COM port redirector technology makes it possible to establish a connection between the host and a networked serial device by creating a local COM or TTY port on the host computer, allowing existing software applications to work without modification. Incoming/outgoing and Telnet sessions on each port give system administrators a high level of control over networked serial devices. Other features include Secure Shell (SSH v2) encryption to protect against unauthorized network monitoring or "sniffing."

Key Industries

Medical
Digi Connect ES
SKU: DC-ES-4SB-EU Digi Connect ES 4SB - 4 ports (International) DC-ES-4SB-EU How to Buy
SKU: DC-ES-8SB-EU Digi Connect ES 8SB - 8 ports (International) DC-ES-8SB-EU How to Buy
SKU: DC-ES-4SB-SW-EU Digi Connect ES 4SB w/ Switch - 4 ports (International) DC-ES-4SB-SW-EU How to Buy
SKU: DC-ES-8SB-SW-EU Digi Connect ES 8SB w/ Switch - 8 ports (International) DC-ES-8SB-SW-EU How to Buy
Digi Remote Manager
Digi Remote Manager
Digi Remote Manager is the technology platform enabling and automating the deployment, monitoring and management of thousands of devices from a single point of command. Compare Digi’s multiple offerings and varying subscription terms to meet your business needs.
  Get Started
Specifications Digi Connect® ES
Features
Management HTTP/HTTPS, CLI or Telnet, Optional secure enterprise management via Digi Remote Manager®
Protocols UDP/TCP, DHCP, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Rlogin & Auto Connect, TFTP
Security SSL, SSL/TLS, SSHv2, FIPS 197 (serial ports), SNMPv2
Software Device-initiated patented RealPort® COM port redirector and RFC 2217, Python scripting, custom development environment
Status LEDs Power, locator, serial and Ethernet link/activity
Operating Systems Microsoft Windows® 7, 8, 8.1, 10 and Windows Server® 2012, 2016, 2019; and Linux®
Note: TCP/UDP socket services are operating system independent.
Dimensions
(L x W x D)
23.5 cm x 26.9 cm x 4.20 cm (9.30 in x 10.60 in x 2.10 in)
Weight 1.34 kg (3.0 lb)
Interfaces
Serial
Ports 4/8 separately isolated RS-232 ports (2.5kV)
Throughput Up to 230 Kbps
Signal Support TXD, RXD, RTS, CTS, DTR, DSR, DCD
Ethernet
Ports 1 uplink, optional 4-port switch
Physical Layer 10/100 Base-T separately isolated (1.5kV)
Mode Full or half duplex
Power Requirements
Power Supply Internal 100-240VAC, 50-60 Hz 0.2A max
Product Surge Protection (ESD) 4 kV burst (EFT) per EN61000-4-4, 2 kV surge transient per EN61000-4-5
4 kV isolation input to output
2 kV surge per EN61000-4-5
Environmental
Operating Temperature 0° C to 55° C (32° F to 130° F)
Storage Temperature -30° C to 85° C (-22° F to 185° F)
Relative Humidity 5 to 95% (non-condensing)
Serial Port Protection (ESD) 15 kV human body model
Standards Compliance
Emissions EN 55011, EN 55022, CISPR 11, CISPR 22
Safety EN 60950-1, IEC 60950-1, EN 60601-1, EN 60601-1-2, IEC 60601-1
Immunity EN 55024, CISPR 24
