Digi® 6300-CX

NRND

Improve business continuity with Digi LTE cellular extenders


  • LTE certified embedded cellular modem
  • LTE with EV-DO fallback
  • Low cost connectivity to any Ethernet device
  • Battery pack for site survey to identify optimal mounting location
  • Remote mounting kit for quick and easy installation
  • Automatic cellular carrier detection with Carrier Smart Select
  • Zero-touch provisioning with cloud management
  • Compact size (4.3 x 4.3 x 1 inches)

The Digi® 6300-CX LTE cellular extender can help eliminate downtime by functioning as either the primary or backup cellular connection. It comes with a carrier-certified embedded cellular modem, for both 3G and 4G LTE with EV-DO fallback. Compatible with any dual-WAN networking appliance, this compact high-performance device achieves more reliable connectivity with your existing equipment.

Deployments are streamlined due to the installation accessories – a disposable battery pack for site survey, PoE injector for optimizing placement for best cellular reception, a mounting bracket -- everything you need for a quick and easy install. Ensure maximum uptime and performance with the flexibility to deploy solutions wherever you need connectivity at a lower cost than traditional Internet connections.

The Digi centralized management platform provides easy setup, configuration and support for installations of Digi and third-party devices. Digi Remote Manager® offers web-based device management solutions to securely monitor and control Digi enterprise routers and gateways -- and the health or your network -- after deployment.

This morning I installed the SIM card in The Digi 6300-CX LTE cellular extender, and it is all working now. I have all green bars. Using a speed test I was getting 30Mb down and 10Mb up. With my Mi-Fi I was only getting 10Mb down and 10Mb up. I give it a 5-Thumbs UP.

Larry Goodnough, Illuminate Technologies

6300-CX


Easy to Install and Find Optimal Location with Best
Signal Strength

Digi 6300-CX is a secure 4G/LTE cellular extender with embedded modem that can be used as a primary 4G/LTE data connection or as a backup network solution to streamline business continuity. When attached to Digi 6300-CX, any Ethernet device can utilize fast and convenient cellular data. It is not necessary to co-locate Digi 6300-CX with other telecommunications equipment; it is designed to be optimally located for the strongest cellular reception.

This eliminates the need for expensive and often ineffective external antennas, although one can be used if needed. The included passive power over Ethernet (PoE) adapter supports a greatly simplified installation and increases placement flexibility. Digi 6300-CX can operate either in IP Pass-Through or in full mode.

Designed for Primary or Failover Internet Access

Digi 6300-CX LTE cellular extender allows any Ethernet connected device to utilize cellular wireless data for either primary or failover internet connectivity. Carrier certified embedded cellular modem supports 4G/LTE and 3G connectivity. The Digi 6300-CX compact size (4.3 x 4.3 x 1 inches) makes it an ideal solution for your IoT applications.

6300-CX
6300-CX

Engineered for Easy and Optimal Installation

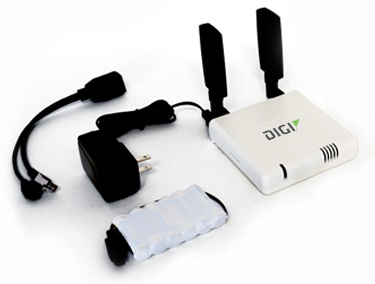

Digi 6300-CX LTE cellular extender ships with a temporary battery pack that can be used to perform a site survey to identify an ideal mounting location with optimal signal strength. The included PoE cable and extensive mounting hardware facilitate rapid installations.

Compare Enterprise Cellular Extenders

 XDigi EX15

Branch connectivity in a compact, affordable, all-in-one solution

XDigi 6310-DX

Avoid network outages with primary or backup LTE connectivity; integrate seamlessly with existing infrastructure

XDigi 6330-MX

High-performance LTE router with Gigabit Ethernet and optional Wi-Fi connectivity for standard or co-located deployments

XDigi 6350-SR

Versatile high-performance LTE router for critical networking applications with a dedicated serial port and optional Wi-Fi

XDigi 6300-CX

Improve business continuity with Digi LTE cellular extenders

 View ProductView ProductView ProductView ProductView Product
Digi aView Cloud Management (Legacy Customers)
Stateful Firewall
Emergency Remote (OOB Encrypted SMS)
WAN Load Balancing
Location Services
SIM-Based Auto-Carrier Selection
IndustryRetail, Financial, MedicalRetail, Financial, MedicalRetail, Financial, MedicalRetail, Financial, MedicalRetail, Financial, Medical
Operating Temperature32 °F to 104 °F32 °F to 104 °F32 °F to 104 °F32 °F to 104 °F32 °F to 104 °F
Ethernet Ports22351
Enterprise-Grade ModemsCertified CORE 1002-CM Plug-In Modem LTE-A/LTE/3G/EVDOCertified CORE 1002-CM Plug-In Modem
LTE-A/LTE/3G/EVDO
Certified CORE 1002-CM Plug-In Modem
LTE-A/LTE/3G/EVDO
Certified CORE 1002-CM Plug-In Modem
LTE-A/LTE/3G/EVDO
Certified Embedded
3G/4G LTE/EVDO
Wi-FiYes (optional)NoYesYesNo
Power18 V18 V24 V12 V15 V
Python ProgrammingYesYesYesYesYes
Dual SIMYesYesYesYesYes
Multi-carrier (3G/4G LTE)YesYesYesYesYes
Supports LTE-A-
Battery for Site Survey✓ (optional)-
Passive PoE for Remote Mounting✓ (optional)-
Mounting Bracket and Accessories✓ (optional)-
WAN Failover-
Interface OptionsRS-232 (RJ45)-USB 2.0USB 2.0, RS-232 (RJ45)-
 View SpecificationsView SpecificationsView SpecificationsView SpecificationsView Specifications

The information on this page is intended for informational and comparison purposes. Please refer to specific product pages for complete specifications.

SPECIFICATIONS Digi 6300-CX
SOFTWARE
REMOTE MANAGEMENT SNMP v1/v2/v3 (support for Digi Remote Manager® 1Q2019)
PROTOCOLS RIP, RIPng, OSPFv2, OSPFv3, BGP, Babel, IS-IS
SECURITY AES, 3DES, IKEv1, OpenVPN, MODECFG, X509, SHA1, DES, MD5, RADIUS, TACACS+
PHYSICAL
DIMENSIONS (L x W x H) 4.3 in x 4.3 in x 1.0 in (109 mm x 109 mm x 25 mm)
WEIGHT 7.5 oz. (0.21 kg)
STATUS LEDs (1) Power / Cell Type, (5) Signal cellular strength
POWER REQUIREMENTS
POWER SUPPLY 15V DC, 800mA; 100-240 AC
OTHER Remote mounting kit, PoE injector and disposable battery for site survey
ENVIRONMENTAL
OPERATING TEMPERATURE 0° C to 40° C (32° F to 104° F)
STORAGE TEMP AND HUMIDITY -13° F to 167° F (-25° C to 75° C); 5% to 95% non-Condensing
APPROVALS
EMISSIONS / IMMUNITY FCC Part 15, Subpart B, Class B; CE, C-Tick/RCM; CAN ICES-3(B)/NMB-3(B)
CELLULAR SPECIFICATIONS
CELLULAR TYPE 6300-CX02 / 6300-CX03: CAT 3 LTE, EVDO, HSPA+, EDGE, GPRS and GSM; 6300-CX05: CAT 6 LTE-A
CELL ANTENNA (2) Dipole; Frequency: 700-960/1575-2700 hz; Gain: 1-4 dBi
SIM (1) SIM card slot (size 2FF)
CELLULAR CERTIFICATIONS PTCRB, Verizon, AT&T, Bell Canada, T-Mobile (North American SKUs); GCF (EU SKU); Telstra (AU / NZ)

Visit https://www.digi.com/resources/certifications for latest certifications
INTERFACES
ETHERNET PORTS (1) 10/100 Base-T Ethernet port
WARRANTY
PRODUCT WARRANTY 3 years
Global Certifications and Band Support
SKU Countries/Region LTE Category 3G UMTS Bands 4G LTE Bands 3G EVDO
ASB-6300-CX02-OUS US, CA, MX 3 1, 2, 4, 5, 8 2, 4, 5, 13, 17, 25
ASB-6300-CX03-GLB EU, AU, HK, NZ, ZA 3 1, 2, 5, 8 1, 3, 7, 8, 20
ASB-6300-CX05-GLB AU, NZ 6 1, 5, 7, 8 1, 3, 5, 7, 8, 28, 40

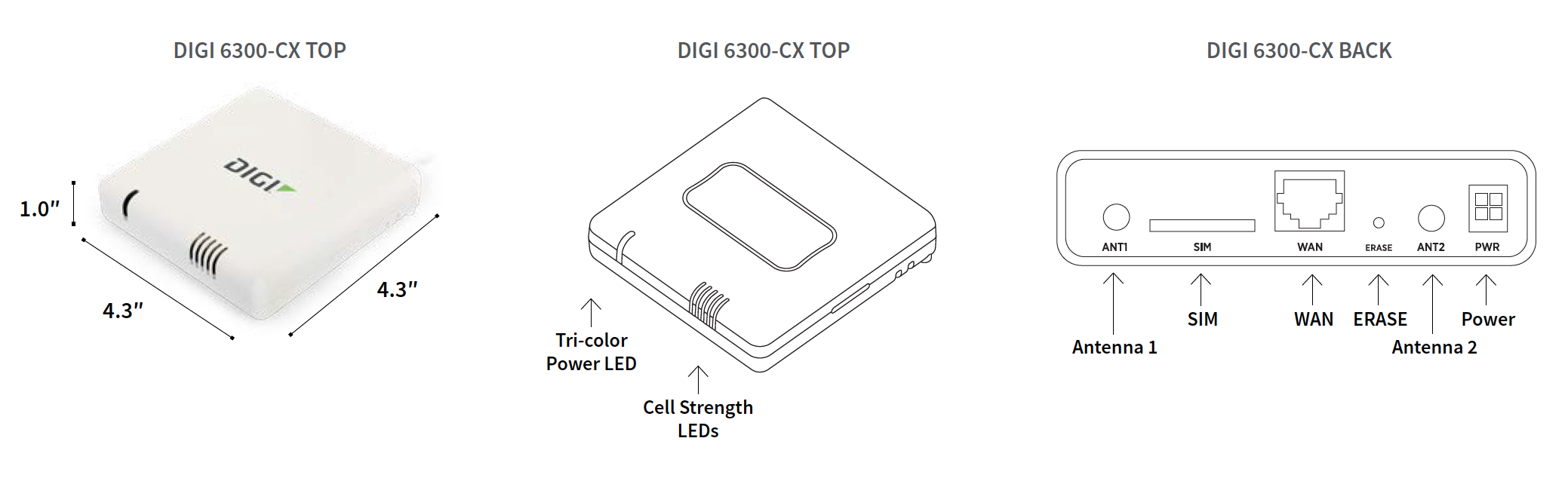

Line Art

COUNTRY CERTIFICATIONS Digi 6300-CX
USA AND CANADA
CANADA FCC, PTCRB, Bell Canada
PUERTO RICO FCC, PTCRB, AT&T, Verizon, Sprint
UNITED STATES FCC, PTCRB, AT&T, Verizon, Sprint
US VIRGIN ISLANDS FCC, PTCRB, AT&T, Verizon, Sprint
EMEA
AUSTRIA GCF; CE
BELGIUM GCF; CE
BULGARIA GCF; CE
CROATIA GCF; CE
CYPRUS GCF; CE
CZECH REPUBLIC GCF; CE
DENMARK GCF; CE
ESTONIA GCF; CE
FINLAND GCF; CE
FRANCE GCF; CE
GERMANY GCF; CE
GREECE GCF; CE
HUNGARY GCF; CE
ICELAND GCF; CE
IRELAND GCF; CE
ITALY GCF; CE
LATVIA GCF; CE
LIECHTENSTEIN GCF; CE
LITHUANIA GCF; CE
LUXEMBOURG GCF; CE
MACEDONIA GCF; CE
NETHERLANDS GCF; CE
NORWAY GCF; CE
POLAND GCF; CE
PORTUGAL GCF; CE
ROMANIA GCF; CE
SLOVAKIA GCF; CE
SLOVENIA GCF; CE
SPAIN GCF; CE
SWEDEN GCF; CE
SWITZERLAND GCF; CE
UNITED KINGDOM GCF; CE
AP
AUSTRALIA GCF; CE; RCM C-Tick E1462
NEW ZEALAND GCF; CE; RCM C-Tick E1462
