AnywhereUSB 8 Plus — 8-port USB over IP remote USB 3.1 hub with 10 M/100 M/1 G/10 G Ethernet, 12 VDC, SFP+ module support and optional cellular Digi CORE module

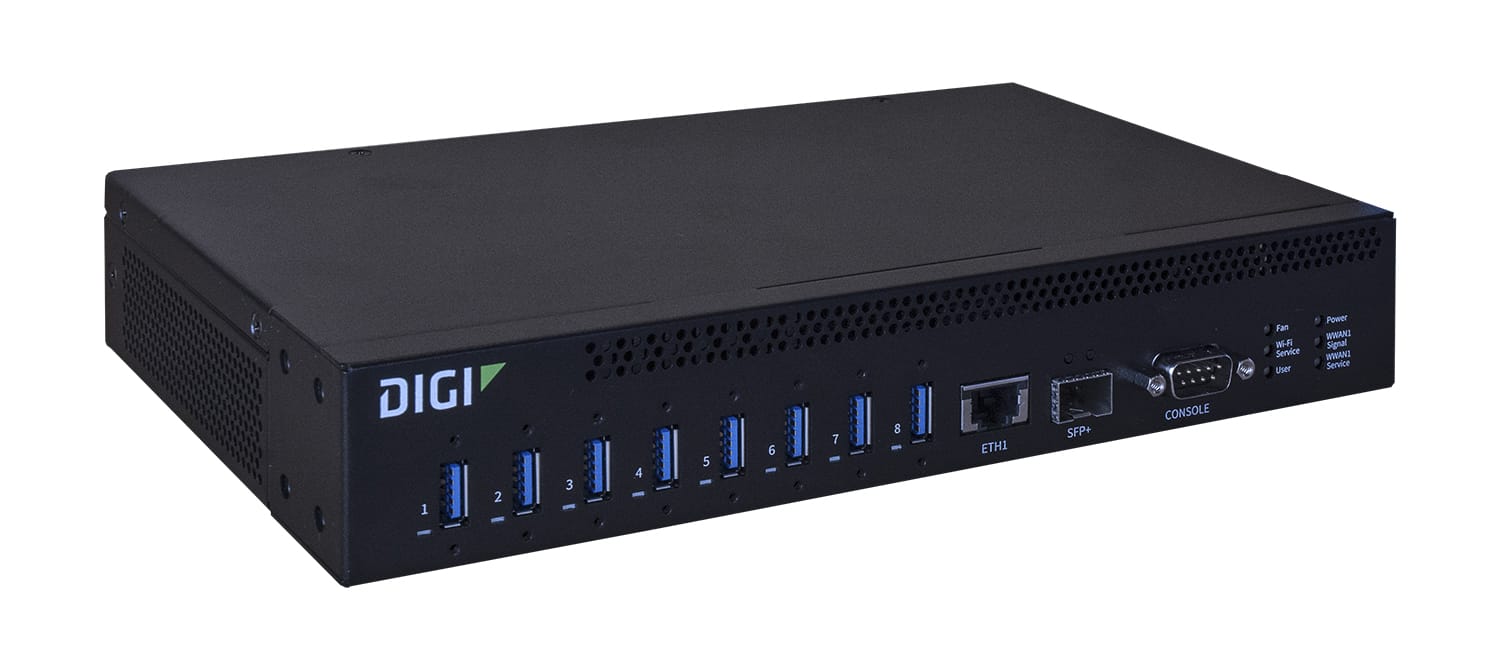

Digi AnywhereUSB® 8 Plus

• Cellular:
  • Module support: (1) Digi CORE® plug-in LTE modem compliant socket
• Wi-Fi:
  • ​Not included
• Software and management:
  • Remote management: Digi Remote Manager® (cloud based)
  • Local management: Web UI (HTTP/HTTPS); CLI (Console, SSH)
  • Operating systems:
    • Windows®: Windows 7, Windows 8.1, Windows 10; Windows Server® 2012 R2, Windows Server 2016 and Windows Server 2019
    • Linux®: Ubuntu® (LTS versions tested 18.04, 20.04, 22.04, 24.04), Debian® (LTS versions tested 10.13, 11.9, 12.5) and Red Hat®/AlmaLinux/Rocky (LTS versions tested 8.10 and 9.4)
  • Protocols: Supports multi-host connectivity for each USB port or group independently
  • Memory: 2 GB RAM, 4 GB flash (eMMC)
• Network:
  • ​Ethernet: (1) RJ-45; 10 M / 100 M / 1 G / 10 G
  • SFP+: (1) SFP+ socket
• Connectors:
  • Console: (1) DB09M; RS-232 DTE
  • USB: (8) USB 3.1 Gen 1 Type A
  • USB port power: 1 A per port (simultaneous)
• Physical:
  • ​Dimensions (L x W x H): 260 mm x 160 mm x 44.45 mm (10 in x 6 in x 1.75 in)
  • Weight: 1.58 kg (3.48 lb)
  • Status LEDs: Ethernet, SFP+, 8x USB, power, fan, user, 2x WWAN (if CORE module is inserted)
• Mounting accessory:
  • ​Rack mount extension kit for use in 19” 1U rack (included)
• Power requirements:
  • ​Power input: 12 VDC, 12 A max
  • Power consumption: 98.5 watts max
  • Power connector: Phoenix connector
• Environmental:
  • ​Operating temperature: 0 °C to 55 °C (-32 °F to 131 °F)
  • Relative humidity: 5% to 95% (non-condensing)
• Approvals*:
  • Safety*: UL 62368/60950, EN 62368, IEC 62368, CSA 22.2 62368-1
  • Emissions / Immunity*: CE; FCC Part 15 Class B, AS/NZS CISPR 22, EN 55024, EN 55032
• Product warranty: 5-year
• Technical support: 1-year LifeCycle Assurance with 24x7 Expert Support included

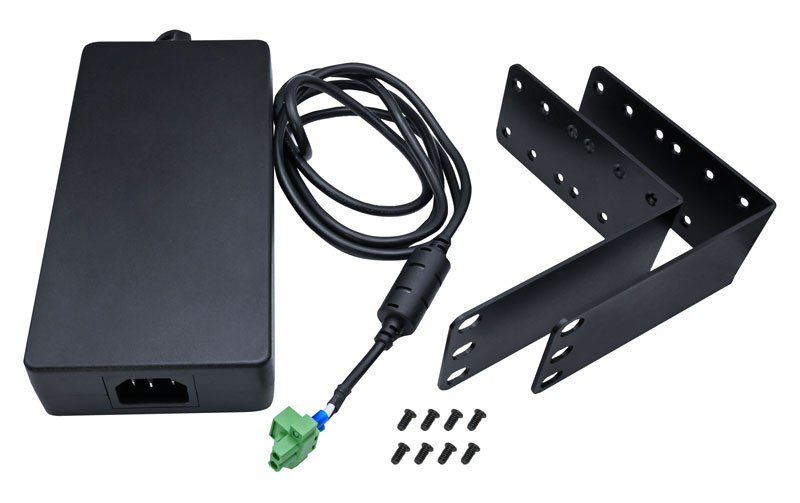

• Accessories: Power supply and rack mount extension included

What's in the box

• Digi AnywhereUSB 8 Plus - 8-port USB over IP remote USB 3.1 hub with 10 M/100 M/1 G/10 G Ethernet, 12 VDC, SFP+ module support and optional cellular Digi CORE module
  • Power supply
  • Rack mount extension kit
