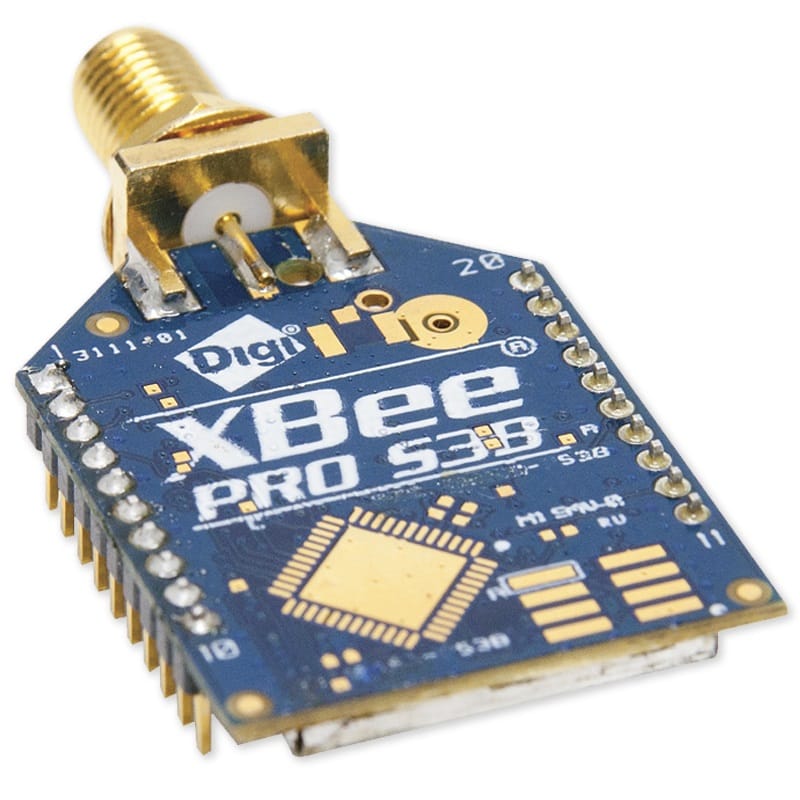

Digi XBee-PRO 900HP RF Module

Long Range 900 MHz OEM RF Module

 XBee-PRO 900HP
XBee-PRO 900HP
 XBee-PRO 900HPXBee-PRO 900HP DigiMesh KitXBee-Pro 900HP Development KitTalk to us about customization options
  • Superior LOS range of up to 28 miles* with high-gain antenna
  • Simplified AT command set and advanced XBee API
  • Over-the-air firmware updates
  • Software-selectable channel mask for interference immunity
  • Advanced sleep modes: sleeping routers, pin sleep, cyclic sleep

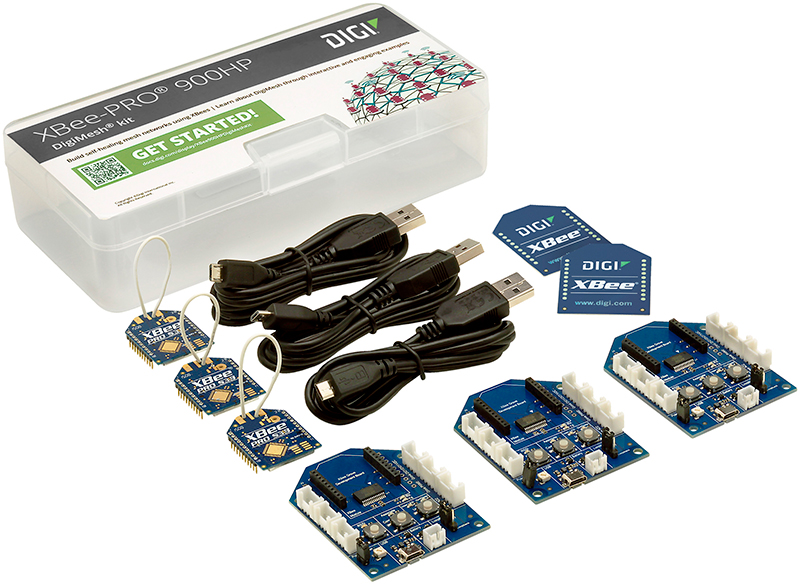

  • Try these modules out with a XBee-PRO 900HP DigiMesh Kit

Digi XBee-PRO® 900HP embedded modules provide best-in-class range wireless connectivity to devices. They take advantage of the DigiMesh® networking protocol, featuring dense network operation and support for sleeping routers, and are also available in a point-to-multipoint configuration. Supporting RF line-of-sight ranges up to 28 miles* (with high-gain antennas), and data rates of up to 200 Kbps, these modules are ideal for extended-range applications requiring increased data throughput.

The Digi XBee-PRO 900HP requires no programming and can be configured easily using Digi’s free XCTU software or via a simplified AT command set. Digi XBee modules are pre-certified for use in multiple countries, further reducing development costs and time to market.

Digi XBee® modules are easy to use, share a common hardware footprint and are available in a variety of different protocols, enabling users to substitute one Digi XBee for another with minimal development time and risk.

Key Industries

Precision Agriculture
At Draganfly we are committed to continuing technological advancement and innovation. That innovation has helped us create incredible systems that are assisting public safety agencies and saving lives.

Cory Baker, Draganfly Innovations production manager

Read the full story

XCTU

Next Generation Configuration Platform for Digi XBee

  • XCTU is free and compatible with Windows, MacOS and Linux.
  • Simple wireless network configuration and architecture.
  • Simple development tool for quickly building XBee API frames.
  • Explore and read firmware release notes.
Learn More
RF Support Services

RF Support Services from Digi

On-site services and support for RF solution implementation including site survey, integration, training and troubleshooting.

LEARN MORE

Compare Sub-GHz Wireless OEM RF Modules

 XDigi XBee XR 868

The Digi XBee XR family operates in the 863-870 MHz range, delivering superior performance and interference immunity

XDigi XBee SX 868 RF Module

RF module family operates in the 863-870 MHz range delivering superior performance and interference immunity at 868 MHz

XDigi XBee SX 900 RF Module

900 MHz OEM RF modules pack maximum power, security, and flexibility into the Digi XBee SMT footprint for mission-critical wireless designs

XDigi XBee-PRO 900HP RF Module

Long Range 900 MHz OEM RF Module

XDigi XTend 900 MHz

1 Watt Long-Range OEM RF modules

 View ProductView ProductView ProductView ProductView Product
Wireless Frequency863-870 MHz863-870 MHz900MHz900MHz900MHz
Receive Sensitivity-107 dBm at 80 Kbps, -112 dBm at 10 Kbps-113 dBm-113 dBm-110 dBm-110 dBm
Form FactorMicro-mount (MMT), surface-mount (SMT), through-hole (TH)Surface MountSurface MountThrough-HoleThrough-Hole
Receive Current26 mA40 mA40 mA29 mA35 mA
Sleep Current1.5 uA1.8 uA2.5 uA2.5 uA< 147 uA
Transmit Current76 mA55 mA @ 13 dBm55 mA @ 13 dBm / 900 mA @ 30 dBm215 mA @ 24 dBm710 mA @ 30 dBm
Transmit PowerUp to 13 dBm ERPUp to 13 dBm ERP20 mW (13 dBm) / 1 W (30 dBm)250 mW (24 dBm)1 W (30 dBm)
Range (LoS) with high gain antennaUp to 14.5 km with 2.1 dBi antennaUp to 14.5 km w/ 2.1 dBi antennaUp to 9 miles / Up to 65 milesUp to 9 milesUp to 40 miles
Encryption256-bit AES128-bit AES256-bit AES128-bit AES128-bit AES
Networking ProtocolDigiMesh, repeater; SX protocol compatibleDigiMesh, Point to MultipointDigiMesh, Point to MultipointDigiMesh, Point to MultipointDigiMesh, Point to Multipoint
Certified RegionsEuropeEuropeUS, CA, AUS, BRAUS, CA, AU, MX, SGUS, CA, AU
Data Rate10 kbps or 80 kbps, software selectableUp to 80 Kbps---
Spread Spectrum-FHSS---
 View SpecificationsView SpecificationsView SpecificationsView SpecificationsView Specifications

The information on this page is intended for informational and comparison purposes. Please refer to specific product pages for complete specifications.

Digi XBee Tools

Develop, Build, Deploy and Manage Your Digi XBee Network

Digi XBee® Tools

Digi XBee Tools support the complete IoT application lifecycle, from the evaluation, testing and prototyping phase through manufacturing and deployment to long-term network management. See how Digi XBee Tools simplify tasks and help get to market faster.

Discover Digi XBee Tools
DigiMesh Kits
SKU: XKB9-DMT-UHP Digi XBee-PRO 900HP DigiMesh Kit (US/Canada) XKB9-DMT-UHP How to Buy
SKU: XKB9-DMT-AHP Digi XBee-PRO 900HP DigiMesh Kit (Australia) XKB9-DMT-AHP How to Buy
North America
SKU: XBP9B-DMWT-002 XBee-PRO 900HP (S3B) DigiMesh, 900MHz, 250mW, Wire Antenna, 200Kbps XBP9B-DMWT-002 How to Buy
SKU: XBP9B-DMST-002 XBee-PRO 900HP (S3B) DigiMesh, 900MHz, 250mW, RPSMA, 200Kbps XBP9B-DMST-002 How to Buy
SKU: XBP9B-DMUT-002 XBee-PRO 900HP (S3B) DigiMesh, 900MHz, 250mW, U.FL, 200Kbps XBP9B-DMUT-002 How to Buy
SKU: XBP9B-DPWT-001 XBee-PRO 900HP (S3B) Point2Multipoint, 900MHz, 250mW, Wire Antenna, 10Kbps XBP9B-DPWT-001 How to Buy
SKU: XBP9B-DPST-001 XBee-PRO 900HP (S3B) Point2Multipoint, 900MHz, 250mW, RPSMA, 10Kbps XBP9B-DPST-001 How to Buy
SKU: XBP9B-DPUT-001 XBee-PRO 900HP (S3B) Point2Multipoint, 900MHz, 250mW, U.FL, 10Kbps XBP9B-DPUT-001 How to Buy
SKU: XBP9B-DMWTB002 XBee-PRO 900HP (S3B) DigiMesh, 900MHz, 250mW, Wire Antenna, 200Kbps, 32K Programmable XBP9B-DMWTB002 How to Buy
SKU: XBP9B-DMSTB002 XBee-PRO 900HP (S3B) DigiMesh, 900MHz, 250mW, RPSMA, 200Kbps, 32K Programmable XBP9B-DMSTB002 How to Buy
SKU: XBP9B-DMUTB002 XBee-PRO 900HP (S3B) DigiMesh, 900MHz, 250mW, U.FL, 200Kbps, 32K Programmable XBP9B-DMUTB002 How to Buy
Australia
SKU: XBP9B-DMWT-022 XBee-PRO 900HP (S3B) DigiMesh, 920MHz (Australia), 250mW, Wire Antenna, 200Kbps XBP9B-DMWT-022 How to Buy
SKU: XBP9B-DMST-022 XBee-PRO 900HP (S3B) DigiMesh, 920MHz (Australia), 250mW, RPSMA, 200Kbps XBP9B-DMST-022 How to Buy
SKU: XBP9B-DMUT-022 XBee-PRO 900HP (S3B) DigiMesh, 920MHz (Australia), 250mW, U.FL, 200Kbps XBP9B-DMUT-022 How to Buy
SKU: XBP9B-DPST-021 XBee-PRO 900HP (S3B) Point2Multipoint, 920MHz (Australia), 250mW, RPSMA, 10Kbps XBP9B-DPST-021 How to Buy
SKU: XBP9B-DPUT-021 XBee-PRO 900HP (S3B) Point2Multipoint, 920MHz (Australia), 250mW, U.FL, 10Kbps XBP9B-DPUT-021 How to Buy
SKU: XBP9B-DMWTB022 XBee-PRO 900HP (S3B) DigiMesh, 920MHz (Australia), 250mW, Wire Antenna, 200Kbps, 32K Programmable XBP9B-DMWTB022 How to Buy
SKU: XBP9B-DMUTB022 XBee-PRO 900HP (S3B) DigiMesh, 920MHz (Australia), 250mW, U.FL, 200Kbps, 32K Programmable XBP9B-DMUTB022 How to Buy
Brazil
SKU: XBP9B-DMWT-012 XBee-PRO 900HP (S3B) DigiMesh, 905/920MHz, 250mW, Wire Antenna, 200Kbps (Brazil) XBP9B-DMWT-012 How to Buy
SKU: XBP9B-DMST-012 XBee-PRO 900HP (S3B) DigiMesh, 905/920MHz, 250mW, RPSMA Antenna, 200Kbps (Brazil) XBP9B-DMST-012 How to Buy
SKU: XBP9B-DMUT-012 XBee-PRO 900HP (S3B) DigiMesh, 905/920MHz, 250mW, U.FL Antenna, 200Kbps (Brazil) XBP9B-DMUT-012 How to Buy
SKU: XBP9B-DPWT-011 XBee-PRO 900HP (S3B) Point2Multipoint, 905/920MHz, 250mW, Wire Antenna, 10Kbps (Brazil) XBP9B-DPWT-011 How to Buy
SKU: XBP9B-DPST-011 XBee-PRO 900HP (S3B) Point2Multipoint, 905/920MHz, 250mW, RPSMA Antenna, 10Kbps (Brazil) XBP9B-DPST-011 How to Buy
SKU: XBP9B-DPUT-011 XBee-PRO 900HP (S3B) Point2Multipoint, 905/920MHz, 250mW, U.FL Antenna, 10Kbps (Brazil) XBP9B-DPUT-011 How to Buy
SKU: XBP9B-DMSTB012 XBee-PRO 900HP (S3B) DigiMesh, 905/920MHz, 250mW, RPSMA, 200Kbps, 32K Programmable (Brazil) XBP9B-DMSTB012 How to Buy
SKU: XBP9B-DMUTB012 XBee-PRO 900HP (S3B) DigiMesh, 905/920MHz, 250mW, U.FL, 200Kbps, 32K Programmable (Brazil) XBP9B-DMUTB012 How to Buy
SKU: XBP9B-DMWTB012 XBee-PRO 900HP (S3B) DigiMesh, 905/920MHz, 250mW, Wire Antenna, 200Kbps, 32K Programmable (Brazil) XBP9B-DMWTB012 How to Buy
Singapore
SKU: XBP9B-DMWT-042 XBee-PRO 900HP (S3B) DigiMesh, 920MHz (Singapore), 250mW, Wire Antenna, 200Kbps XBP9B-DMWT-042 How to Buy
SKU: XBP9B-DMST-042 XBee-PRO 900HP (S3B) DigiMesh, 920MHz (Singapore), 250mW, RPSMA, 200Kbps XBP9B-DMST-042 How to Buy
SKU: XBP9B-DMUT-042 XBee-PRO 900HP (S3B) DigiMesh, 920MHz (Singapore), 250mW, U.FL, 200Kbps XBP9B-DMUT-042 How to Buy
SKU: XBP9B-DPST-041 XBee-PRO 900HP (S3B) Point2Multipoint, 920MHz (Singapore), 250mW, RPSMA, 10Kbps XBP9B-DPST-041 How to Buy
Development Boards
SKU: 76000956 Grove Connector Development Board - XBee, through-hole sockets 76000956 How to Buy
SKU: XBIB-CU-TH Development board - XBee 3, USB-C, through-hole sockets XBIB-CU-TH How to Buy
Digi XBee Multi Programmer
SKU: XBEE-MP-TH Digi XBee Multi Programmer, through-hole (TH) XBEE-MP-TH How to Buy
SKU: XBEE-MP-TH-PCB Digi XBee Multi Programmer, through-hole (TH) printed circuit board XBEE-MP-TH-PCB How to Buy
Related
Digi XBee-PRO 900HP RF Modems
Digi XBee-PRO 900HP RF Modems
  Get Started
Antennas

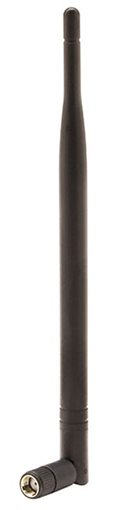

SKU: A09-HASM-7 Antenna - 900 MHz, half wave dipole, 2.1 dBi, RPSMA male, articulating. A09-HASM-7 How to Buy
SKU: A09-Y8NF Antenna - 900 MHz, yagi, 8.1 dBi, N-female. A09-Y8NF How to Buy
SKU: A09-Y11NF Antenna - 900 MHz, yagi, 11.1 dBi, N-female. A09-Y11NF How to Buy

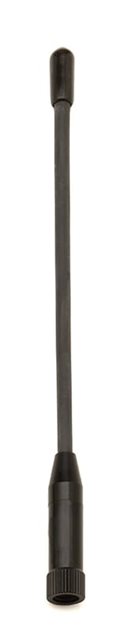

SKU: A09-HSM-7 Antenna - 900 MHz, half wave dipole, 2.1 dBi, RPSMA male. A09-HSM-7 How to Buy

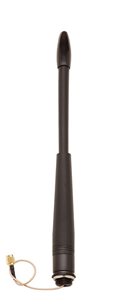

SKU: A09-HBSM-P5I Antenna - 900 MHz, half wave dipole, 2.1 dBi, RPSMA male. A09-HBSM-P5I How to Buy
Hardware Digi XBee-PRO 900HP Digi Programmable XBee-PRO 900HP
Hardware
Processor ADF7023 transceiver, Cortex-M3 EFM32G230 @ 28 MHz
Programmable includes: Freescale MC9S08QE32
Frequency Band 902 to 928 MHz, software selectable channel mask for interference immunity
Antenna Options Wire, U.FL and RPSMA
Performance
RF Data Rate 10 Kbps or 200 Kbps
Indoor/Urban Range* 10 Kbps: up to 2000 ft (610 m); 200 Kbps: up to 1000 ft (305 m)
Outdoor/ Line-Of-Sight Range* 10 Kbps: up to 9 miles (14 km); 200 Kbps: up to 4 miles (6.5 km) ( w/ 2.1 dB dipole antennas)
Transmit Power Up to 24 dBm (250 mW) software selectable
Receiver Sensitivity -101 dBm @ 200 Kbps, -110 dBm @ 10 Kbps
Features
Data Interface UART (3V), SPI
GPIO Up to 15 Digital I/O, 4 10-bit ADC inputs, 2 PWM outputs
Networking Topologies DigiMesh, Repeater, Point-to-Point, Point-to-Multipoint, Peer-to-Peer
Spread Spectrum FHSS (Software Selectable Channels)
Programmability
Memory N/A 32 KB Flash / 2 KB RAM
CPU/Clock Speed N/A HCS08 / Up to 50.33 MHz
Power
Supply Voltage 2.1 to 3.6 VDC 2.4 to 3.6 VDC
Transmit Current 215 mA 229 mA
Receive Current 29 mA 44 mA
Sleep Current 2.5 uA 3 uA
Regulatory Approvals**
FCC (USA) MCQ-XB900HP
IC (Canada) 1846A-XB900HP
C-Tick (Australia) Yes
Anatel (Brazil) Yes
IDA (Singapore) Yes

*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.

**Visit https://www.digi.com/resources/certifications for latest certifications
