Digi XBee® 802.15.4

NRND

Low-cost, easy-to-deploy RF modules provide critical end-point connectivity to devices and sensors


  • Simple, out-of-the-box RF communications, no configuration needed
  • Point-to-multipoint network topology
  • 2.4 GHz for worldwide deployment
  • Common XBee footprint for a variety of RF modules
  • Industry leading sleep current of sub 1uA
  • Firmware upgrades via UART, SPI or over the air
  • Migratable to DigiMesh and Zigbee PRO protocols and vice-versa
  • Turnkey development available from Digi WDS

Digi XBee RF modules provide OEMs with a common footprint shared by multiple platforms, including multipoint and ZigBee/ Mesh topologies, and both 2.4 GHz and 900 MHz solutions. OEMs deploying the XBee can substitute one Digi XBee for another, depending upon dynamic application needs, with minimal development, reduced risk and shorter time-to-market.

Digi XBee 802.15.4 RF modules are ideal for applications requiring low latency and predictable communication timing. Providing quick, robust communication in point-to-point, peer-to-peer, and multipoint/star configurations, Digi XBee 802.15.4 products enable robust end-point connectivity with ease. Whether deployed as a pure cable replacement for simple serial communication, or as part of a more complex hub-and-spoke network of sensors, Digi XBee 802.15.4 RF modules maximize performance and ease of development.

XBee 802.15.4 modules seamlessly interface with compatible gateways, device adapters and range extenders, providing developers with true beyond-the-horizon connectivity.

The updated Digi XBee S2C 802.15.4 module is built with the SiliconLabs EM357 SoC and offers improved power consumption, support for over-the-air firmware updates, and provides an upgrade path to DigiMesh® or Zigbee® mesh protocols if desired.

XBee S2C 802.15.4
SKU: XKB2-A2T-WWC Wireless Connectivity Kit with Digi XBee 802.15.4 (S2C) XKB2-A2T-WWC How to Buy
SKU: XB24CAWIT-001 XBee 802.15.4 through-hole module w/ wire antenna XB24CAWIT-001 How to Buy
SKU: XB24CAPIT-001 XBee 802.15.4 through-hole module w/ PCB antenna XB24CAPIT-001 How to Buy
SKU: XB24CAUIT-001 XBee 802.15.4 through-hole module w/ U.fl connector XB24CAUIT-001 How to Buy
SKU: XB24CASIT-001 XBee 802.15.4 through-hole module w/ RPSMA connector XB24CASIT-001 How to Buy
SKU: XB24CAPIS-001 XBee 802.15.4 SMT module w/ PCB antenna XB24CAPIS-001 How to Buy
SKU: XB24CAUIS-001 XBee 802.15.4 SMT module w/ U.fl connector XB24CAUIS-001 How to Buy
SKU: XB24CARIS-001 XBee 802.15.4 SMT module w/ RF Pad connector XB24CARIS-001 How to Buy
Development Boards

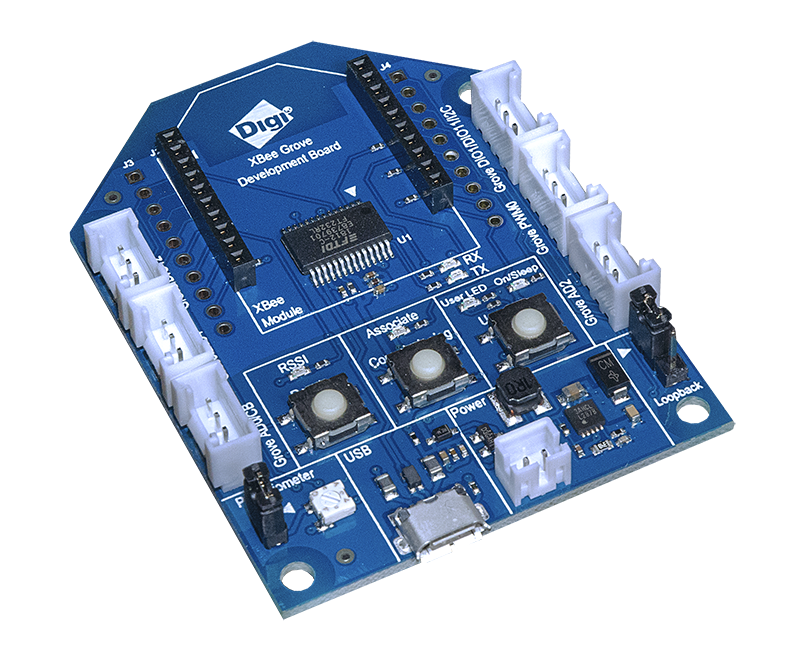

SKU: 76000956 Grove Connector Development Board - XBee, through-hole sockets 76000956 How to Buy
SKU: XBIB-C-SMT Development board - XBee 3, USB-C, surface-mount socket XBIB-C-SMT How to Buy
SKU: XBIB-CU-TH Development board - XBee 3, USB-C, through-hole sockets XBIB-CU-TH How to Buy
Digi XBee Multi Programmer
SKU: XBEE-MP-SMT End-of-life
Digi XBee Multi Programmer, surface mount (SMT)
XBEE-MP-SMT How to Buy
SKU: XBEE-MP-TH Digi XBee Multi Programmer, through-hole (TH) XBEE-MP-TH How to Buy
SKU: XBEE-MP-SMT-PCB End-of-life
Digi XBee Multi Programmer, surface mount (SMT) printed circuit board
XBEE-MP-SMT-PCB How to Buy
SKU: XBEE-MP-TH-PCB Digi XBee Multi Programmer, through-hole (TH) printed circuit board XBEE-MP-TH-PCB How to Buy
Antennas

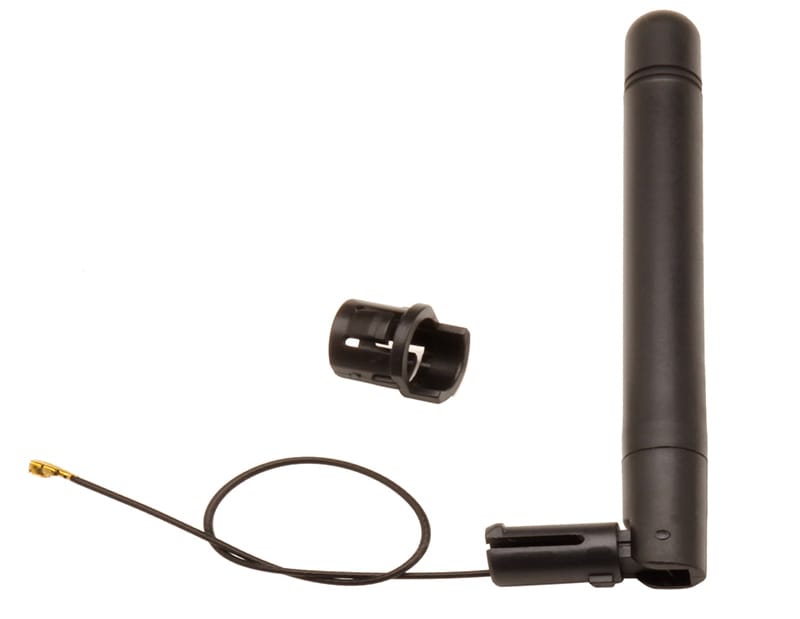

SKU: A24-HABUF-P5I Antenna - 2.4 GHz, half wave dipole, 2.1 dBi, U.FL female, articulating. A24-HABUF-P5I How to Buy

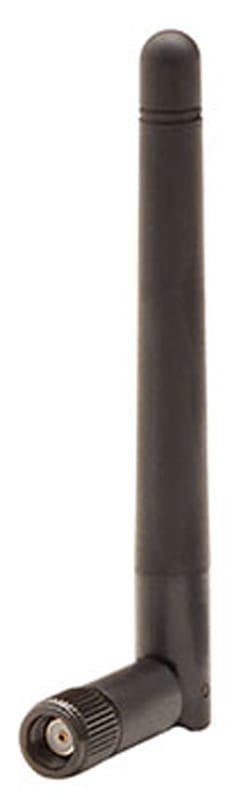

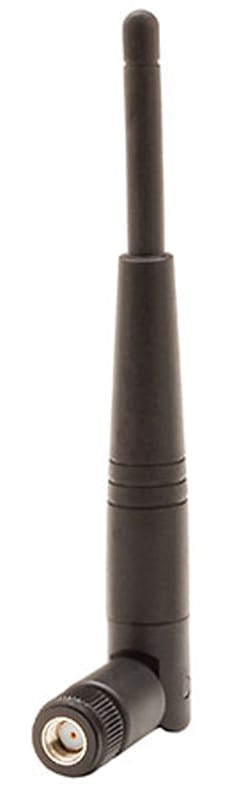

SKU: A24-HASM-450 Antenna - 2.4 GHz, half wave dipole, 2.1 dBi, RPSMA male, articulating. A24-HASM-450 How to Buy
SKU: A24-HASM-525 Antenna - 2.4 GHz, half wave dipole, 2.1 dBi, RPSMA male, articulating. A24-HASM-525 How to Buy
SKU: DC-ANT-24DT Antenna - Wi-Fi, table-top mount, 2450 Mhz, 0.5 m cable DC-ANT-24DT How to Buy
Service and Support
SKU: DG-PSOS-CUST On-site and Troubleshooting DG-PSOS-CUST How to Buy
SKU: DG-PSSS-RF Site Survey - RF DG-PSSS-RF How to Buy
SKU: DG-PSIC-CUST Implementation Planning DG-PSIC-CUST How to Buy
SKU: DG-PSPP-CUST Installation Services DG-PSPP-CUST How to Buy
The Digi modules operate from 868 to 900 MHz and 2.4 GHz. This is an invaluable advantage, as it means that we are able to choose the model we need and reach international markets with just one plug.

David Gascón, CTO at Libelium

Read the full story

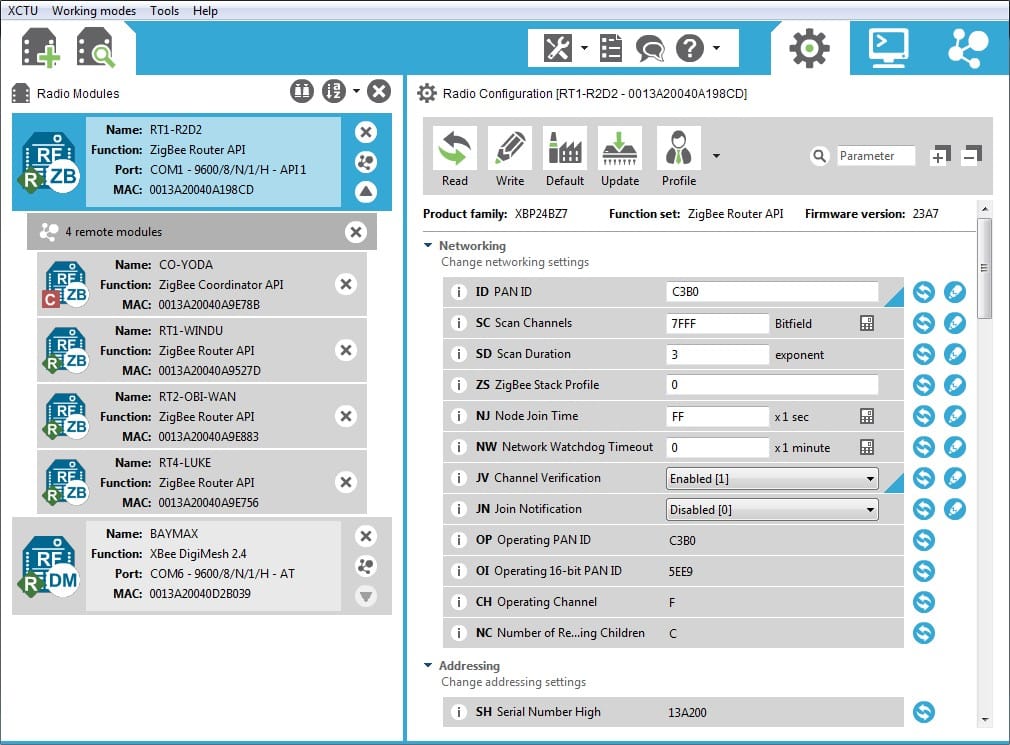

XCTU

Next Generation Configuration Platform for Digi XBee

  • XCTU is free and compatible with Windows, MacOS and Linux.
  • Simple wireless network configuration and architecture.
  • Simple development tool for quickly building XBee API frames.
  • Explore and read firmware release notes.
Learn More
RF Support Services

RF Support Services from Digi

On-site services and support for RF solution implementation including site survey, integration, training and troubleshooting.

LEARN MORE
Digi XBee Tools

Develop, Build, Deploy and Manage Your Digi XBee Network

Digi XBee® Tools

Digi XBee Tools support the complete IoT application lifecycle, from the evaluation, testing and prototyping phase through manufacturing and deployment to long-term network management. See how Digi XBee Tools simplify tasks and help get to market faster.

Discover Digi XBee Tools

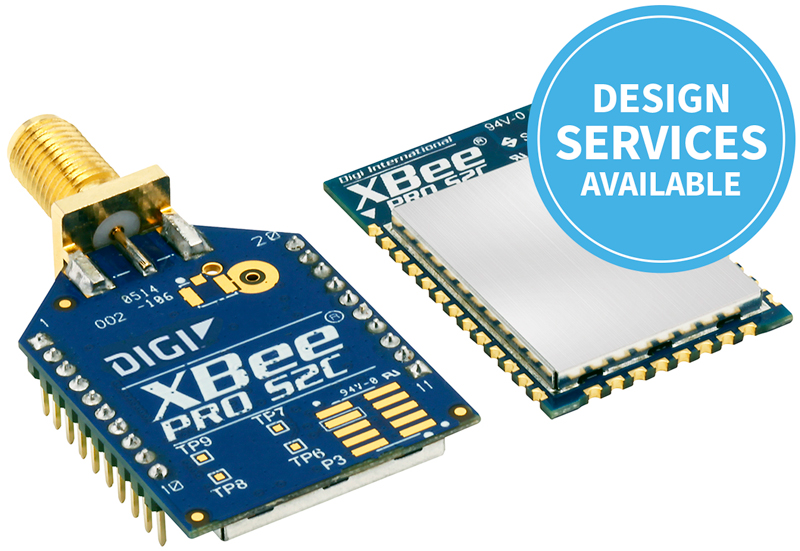

  Digi XBee S2C 802.15.4 Digi XBee-PRO S2C 802.15.4
PERFORMANCE
TRANSCEIVER CHIPSET Silicon Labs EM357 SoC
DATA RATE RF 250 Kbps, Serial up to 1 Mbps
INDOOR/URBAN RANGE* Up to 200 ft (60 m) Up to 300 ft (90 m)
OUTDOOR/RF LINE-OF-SIGHT RANGE* Up to 4000 ft (1200 m) Up to 2 miles (3200 m)
TRANSMIT POWER 3.1 mW (+5 dBm) / 6.3 mW (+8 dBm)boost mode 63 mW (+18 dBm)
RECEIVER SENSITIVITY (1% PER) -100 dBm / -102 dBm boost mode -101 dBm
FEATURES
SERIAL DATA INTERFACE UART, SPI
CONFIGURATION METHOD API or AT commands, local or over-the-air (OTA)
FREQUENCY BAND ISM 2.4 GHz
FORM FACTOR Through-Hole, Surface Mount
HARDWARE S2C
ADC INPUTS (4) 10-bit ADC inputs
DIGITAL I/O 15
ANTENNA OPTIONS Through-Hole: PCB Antenna, U.FL Connector, RPSMA Connector, or Integrated Wire
SMT: RF Pad, PCB Antenna, or U.FL Connector
OPERATING TEMPERATURE -40º C to +85º C
DIMENSIONS (L X W X H) AND WEIGHT Through-Hole: 0.960 x 1.087 in (2.438 x 2.761 cm)
SMT: 0.866 x 1.33 x 0.120 in (2.199 x 3.4 x 0.305 cm)
Through-Hole: 0.960 x 1.297 in (2.438 x 3.294 cm)
SMT: 0.866 x 1.33 x 0.120 in (2.199 x 3.4 x 0.305 cm)
NETWORKING AND SECURITY
PROTOCOL XBee 802.15.4
UPDATABLE TO DIGIMESH PROTOCOL Yes
UPDATABLE TO ZIGBEE PROTOCOL Yes
INTERFERENCE IMMUNITY DSSS (Direct Sequence Spread Spectrum)
ENCRYPTION 128-bit AES
RELIABLE PACKET DELIVERY Retries/Acknowledgements
FILTRATION OPTIONS PAN ID, Channel, and 64-bit addresses
CHANNELS 16 channels 15 channels
POWER REQUIREMENTS
SUPPLY VOLTAGE 2.1 to 3.6V 2.7 to 3.6V
TRANSMIT CURRENT 33 mA @ 3.3 VDC / 45 mA boost mode 120 mA @ 3.3 VDC
RECEIVE CURRENT 28 mA @ 3.3 VDC / 31 mA boost mode 31 mA @ 3.3 VDC
POWER-DOWN CURRENT <1 μA @ 25º C <1 μA @ 25º C
REGULATORY APPROVALS
FCC, IC (NORTH AMERICA) Yes Yes
ETSI (EUROPE) Yes No
RCM (AUSTRALIA AND NEW ZEALAND) No (Coming soon) No (Coming soon)
TELEC (JAPAN) Yes Yes

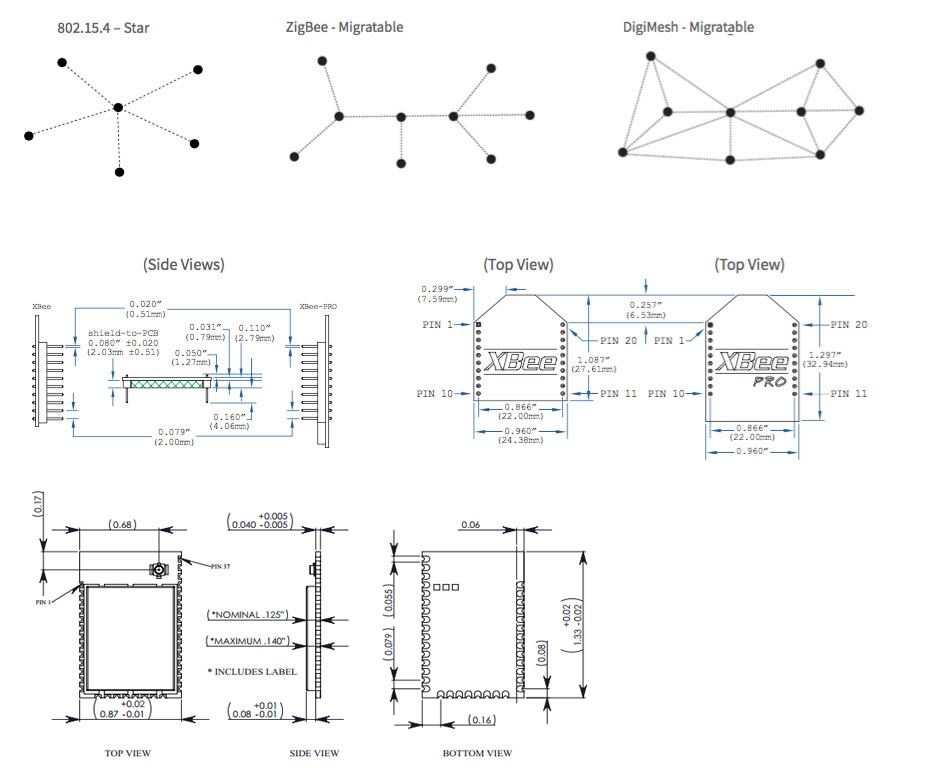

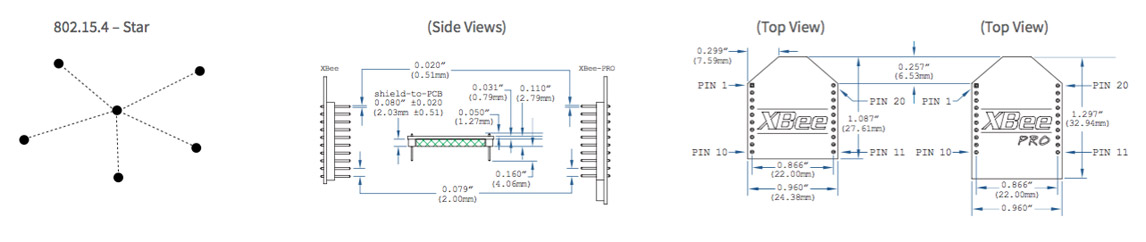

Line Art

*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.

  Legacy Digi XBee S1 802.15.4 Legacy Digi XBee-PRO S1 802.15.4
PERFORMANCE
RF DATA RATE 250 kbps 250 kbps
INDOR/URBAN RANGE* Up to 100 ft (30 m) Up to 300 ft (100 m)
OUTDOOR/RF LINE-OF-SIGHT RANGE* Up to 300 ft (100 m) Up to 1 mi (1.6 km)
TRANSMIT POWER 1 mW (+0 dBm) 60 mW (+18 dBm)*
RECEIVER SENSITIVITY (1% PER) -92 dBm -100 dBm
DIGI HARDWARE S1
TRANSCEIVER CHIPSET Freescale MC13212
FEATURES
SERIAL DATA INTERFACE 3.3V CMOS UART
CONFIGURATION METHOD API or AT Commands, local or over-the-air
FREQUENCY BAND 2.4 GHz
INTERFERENCE IMMUNITY DSSS (Direct Sequence Spread Spectrum)
SERIAL DATA RATE 1200 bps - 250 kbps
ADC INPUTS (6) 10-bit ADC inputs
DIGITAL I/O 8
ANTENNA OPTIONS Chip, Wire Whip, U.FL, & RPSMA
NETWORKING & SECURITY
ENCRYPTION 128-bit AES
RELIABLE PACKET DELIVERY Retries/Acknowledgments
IDS AND CHANNELS PAN ID, 64-bit IEEE MAC, 16 Channels
POWER REQUIREMENTS
SUPPLY VOLTAGE 2.8 - 3.4VDC 2.8 - 3.4VDC
TRANSMIT CURRENT 45 mA @ 3.3VDC 215 mA @ 3.3VDC
RECEIVE CURRENT 50 mA @ 3.3VDC 55 mA @ 3.3VDC
POWER-DOWN CURRENT <10 uA @ 25º C
REGULATORY APPROVALS**
FCC (USA) OUR-XBEE OUR-XBEEPRO
IC (CANADA) 4214A-XBEE 4214A-XBEEPRO
ETSI (EUROPE) Yes Yes - Max TX 10 mW
C-TICK AUSTRALIA Yes
TELEC (JAPAN) Yes
Line Art

*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.

**Visit https://www.digi.com/resources/certifications for latest certifications

Visit the support website for firmware, drivers, software, knowledge base articles and manuals
