Digi XBee LR RF Module for LoRaWAN

New

Digi XBee LR is a wireless communications module that OEMs can easily incorporate into end-node sensor products – enabling the LoRaWAN protocol for device-to-cloud connectivity

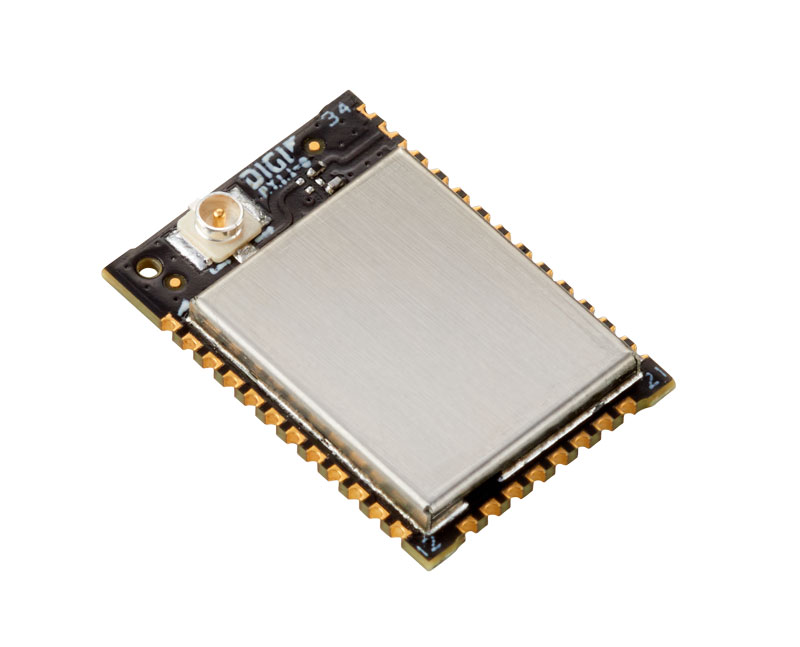

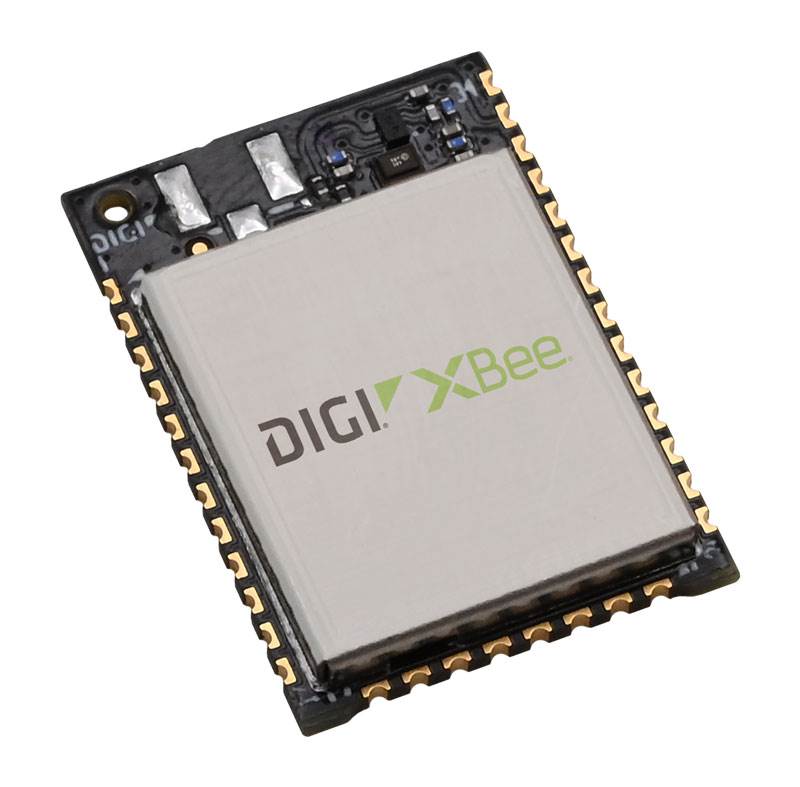

Digi XBee LR with Digi X-ON Digi XBee LR Module for LoRaWAN — MMT with U.FL Digi XBee LR Module for LoRaWAN — MMT with U.FL front Digi XBee LR Module for LoRaWAN — MMT with U.FL back Digi XBee LR Module for LoRaWAN — MMT with RF pad Digi XBee LR Module for LoRaWAN — MMT with RF pad front Digi XBee LR Module for LoRaWAN — MMT with RF pad back Digi XBee IoT Solution for LoRaWAN End-to-End Digi XBee IoT Solution for LoRaWAN Digi X-ON Cloud
  • Pre-certification: modular certifications for FCC, IC, and CE standards
  • LoRaWAN compatibility: supports the low-power, long-range wide area networking protocol built on the LoRa radio modulation technique
  • Versatility: integrates with existing hardware in MMT footprint with 600 nA power consumption
  • Zero-touch provisioning: remotely provision and maintain devices that embed Digi XBee LR modules using Digi X-ON™
  • Single SKU: one footprint with regional support for multiple bands, including US915, EU868 and more
SIGN UP FOR UPDATES

Digi XBee® LR modules accelerate time to market for developers, OEMs and solution providers to rapidly deploy LoRaWAN wireless connected solutions.

The Digi XBee LR module is available in a range of embedded form factors with a software-defined radio that supports multiple global regional profiles from a single device across multiple LoRaWAN™ markets.

Digi XBee LR modules are ideally suited for very narrowband industrial communications for sensors and control systems, with a temperature rating for −40 °C to 85 °C. The Digi XBee LR uses LoRa™ modulation for Non-Line-of-Sight (NLOS) two-way communications for long-range and high-noise RF environments.

The XBee LR supports the LoRaWAN communications protocol, enabling direct communication with standards-compliant LoRaWAN gateways and network server cloud software over long range with very low-power consumption.

IoT management with Digi X-ON

Digi XBee LR modules are pre-activated on the Digi X-ON IoT platform for automated connection and two-way device management. The Digi XBee LR module provides a simplified Digi Embedded API and AT command interpreter to interface with your sensor over serial.


LoRaWAN        Digi X-ON

Download datasheetDownload datasheet Related productsRelated products Add to compareAdd to compare

Featured Related Content

Digi LoRaWAN Starter Kit Datasheet Digi LoRaWAN Starter Kit Datasheet A complete, end-to-end device, gateway and cloud kit to accelerate development of your IoT solution View Datasheet Digital Transformation in Yard Management Using LoRaWAN Digital Transformation in Yard Management Using LoRaWAN In the dynamic environment of a freight yard, IoT technology, including LoRaWAN solutions, can provide accurate insight into... Recorded Webinar Digi XBee Intelligent Edge Controller Datasheet Digi XBee Intelligent Edge Controller Datasheet Cloud-managed LPWAN smart industrial IoT solution for edge sensors and systems View Datasheet

More related content

Related Products

Digi HX15 Gateway for LoRaWAN® Digi HX15 Gateway for LoRaWAN® Digi HX20 Gateway for LoRaWAN® Digi HX20 Gateway for LoRaWAN® Digi XBee Intelligent Edge Controller Digi XBee Intelligent Edge Controller Digi X-ON IoT Platform for LoRaWAN® Digi X-ON IoT Platform for LoRaWAN®
Specifications Digi XBee LR
PERFORMANCE
FREQUENCY RANGE ISM 902 to 928 MHz, 868 to 870 MHz
TRANSMIT POWER (SOFTWARE SELECTABLE) Up to +21 dB (US), +14 dB (EU)
RECEIVER SENSITIVITY −148 dBm
STANDARDS COMPLIANCE LoRaWAN 1.0.4, OTAA, ABP
REGIONAL BANDS US915, EU868
LORAWAN CLASSES A, C
RURAL RANGE LINE-OF-SIGHT* Up to 20 km (12.43 miles)
URBAN RANGE LINE-OF-SIGHT* Up to 3 km (1.86 miles)
NETWORKING AND SECURITY
MODULATION LoRa
SOFTWARE FEATURES Digi XBee API or AT
DIGI X-ON IOT PLATFORM Network server, OTA configuration, JOIN Server, Scan-and-Go Provisioning, Auto-JOIN, MQTT Cloud Connector
ENCRYPTION LoRaWAN AES 128-bit
GENERAL
DIMENSIONS MMT: 13 mm x 19 mm x 2 mm (0.533 in x 0.76 in x 0.087 in)
WEIGHT MMT: 1.2 g (0.042 oz)
ROHS Compliant
MANUFACTURING ISO 9001: 2000 registered standards
HOST INTERFACE OPTIONS UART
ANTENNA CONNECTION OPTIONS U.FL or RF pad
ANTENNA IMPEDENCE 50 ohms
OPERATING TEMPERATURE −40 °C to 85 °C (−40 °F to 185 °F)
POWER REQUIREMENTS
SUPPLY VOLTAGE 1.8 to 3.6 VDC
TRANSMIT CURRENT 124 mA (3.3 V)
RECEIVE CURRENT 10 mA (3.3 V)
SLEEP CURRENT 2 uA (Class A)
REGULATORY APPROVALS
UNITED STATES FCC
CANADA IC
EUROPE CE
AUSTRALIA Compliant
NEW ZEALAND Compliant
BRAZIL Compliant
MEXICO Compliant

*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
**Subscriptions and accessories not included with Digi XBee LR unless otherwise noted.
