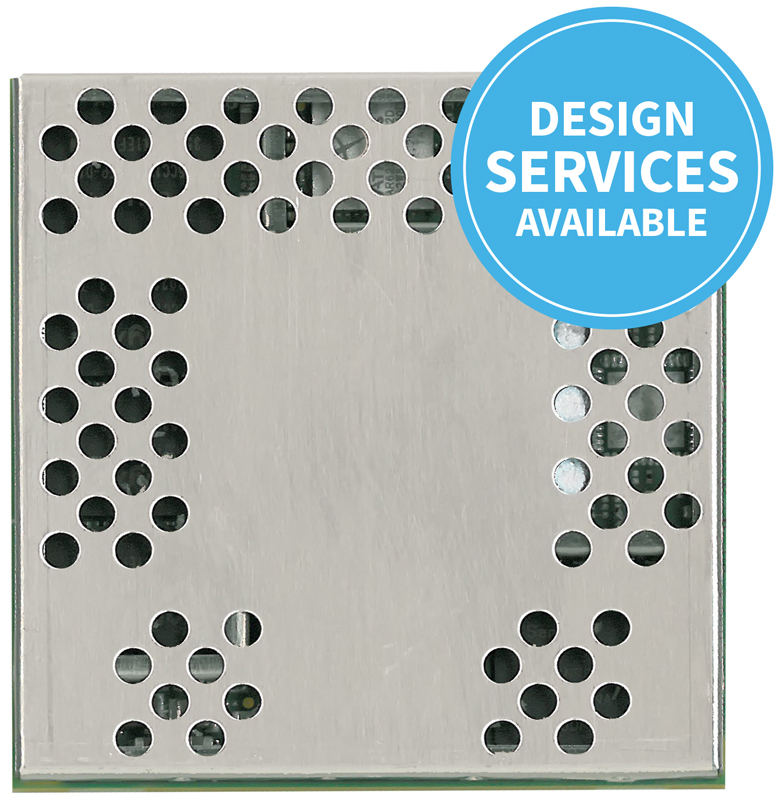

Digi ConnectCore 6 / 6N

NXP i.MX6 based surface-mount module solution with scalable, single-/multi-core performance and integrated wireless


  • Scalable Cortex®-A9 multi-core performance
  • Cost-effective, reliable, low-profile surface-mount module form factor
  • Pre-certified 802.11a/b/g/n/ac and Bluetooth® 5.0
  • Smart Power Management Architecture with PMIC
  • Android™, Yocto Project Linux® and Windows® Embedded Compact software platform support
  • Reliable design with IEC 60068 and HALT verification
  • Designed for long-term availability
How to Buy Support

Digi ConnectCore® 6N is an ultra-compact and highly integrated system-on-module solution based on the NXP i.MX6 Cortex-A9 processor family.

With processor speeds up to 1.2 GHz and fully pin-compatible single-/dual-/quad-core variants, the ConnectCore 6N offers a truly future-proof platform solution with scalable performance and pre-certified wireless 802.11a/b/g/n/ac and Bluetooth 5.0, including Bluetooth Low Energy, connectivity.

Its low-profile, surface-mount design maximizes integration flexibility and significantly reduces design risk in a highly cost-effective, reliable form factor with optimized heat dissipation capabilities even in the most demanding quad-core system configurations.

Digi ConnectCore 6N comes with a complete Board Support Package (BSP) for both Linux and Android platforms supporting secure remote management and web services through Digi Remote Manager®.

TrustFenceYocto ProjectBluetoothWi-Fi AllianceNXP Gold PartnerPowered by AWSAndroid



Digi ConnectCore 6N Wireless Connectivity In-A-Box Kit by Symmetry Electronics

CC6 Wireless Connectivity In-A-Box Kit

The CC6-CONNECTIVITY-IN-A-BOX kit, by Symmetry Electronics, enables you to easily create proof-of-concept designs using the Digi ConnectCore 6N with Bluetooth 5.0, Wifi (802.11a/b/g/n/ac), LTE cellular technology, GPS, and Digi XBee Zigbee/900Mhz/2.4Ghz.

Learn More




Build Secure Connected Embedded Devices Powered By Digi TrustFence

TrustFence

Device security is a critical design aspect for every connected device. Digi ConnectCore 6N combines a secure module platform with a complete embedded device security software framework. Build products today that provide you and your customers with a secure product platform now and in the future.

  • Managed device security software framework
  • U-Boot and Linux platform integration
  • Transparent and future-proof architecture
  • Zero implementation effort

Learn More

Key Industries

Intelligent Lighting ControlsOutpatient Care Devices
Download datasheetDownload datasheet User manualsUser manuals & guides User manualsUser manuals & guides Related productsRelated products Add to compareAdd to compare

Digi Product Integration

Digi WDS engineers can customize Digi hardware components and software products to accelerate your time to market.

Featured Related Content

Digi ConnectCore 6 Datasheet Digi ConnectCore 6 Datasheet NXP i.MX6 based surface-mount module solution with scalable, single-/multi-core performance and integrated wireless View Datasheet Digi and Frazer-Nash Team up to Create Cleaner, Greener Transport for London Metrocabs Digi and Frazer-Nash Team up to Create Cleaner, Greener Transport for London Metrocabs Frazer-Nash is tapping the power of the Digi International® ConnectCore® 6 System-on-Module to drive the powertrain... Watch Video

More related content

Related Products

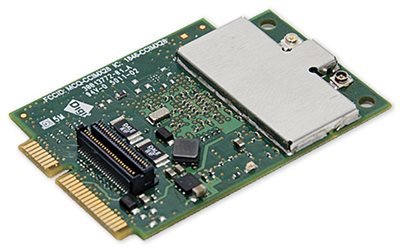

Digi ConnectCore 6N SBC Digi ConnectCore 6N SBC Digi ConnectCore 8M Nano Digi ConnectCore 8M Nano Digi ConnectCore 8M Mini Digi ConnectCore 8M Mini Digi XBee Zigbee Digi XBee Zigbee Digi ConnectCard for i.MX28 Digi ConnectCard for i.MX28
Development Kits
SKU: CC-WMX6N-KIT Digi ConnectCore 6N SBC Development Kit: ConnectCore 6N Development Kit with SBC baseboard, UART console cable, power supply and accessories (Linux, Android) CC-WMX6N-KIT How to Buy
Ethernet Only Modules
SKU: CC-MX-L76C-Z1 Digi ConnectCore 6N SOM, i.MX6DualLite, Industrial, 800 MHz, -40 to 85° C, 4 GB eMMC flash, 512 MB DDR3, Ethernet CC-MX-L76C-Z1 How to Buy
SKU: CC-MX-L77C-Z1 Digi ConnectCore 6N SOM, i.MX6DualLite, Industrial, 800 MHz, -40 to 85° C, 4 GB eMMC flash, 1 GB DDR3, Ethernet CC-MX-L77C-Z1 How to Buy
Wireless Modules
SKU: CC-WMX-L76C-N Digi ConnectCore 6N SOM, i.MX6DualLite, Industrial, 800 MHz, -40 to 85° C, 4 GB eMMC flash, 512 MB DDR3, 802.11a/b/g/n/ac, Bluetooth 5.0, Ethernet CC-WMX-L76C-N How to Buy
SKU: CC-WMX-L87C-N Digi ConnectCore 6N SOM, i.MX6Dual, Industrial, 800 MHz, -40 to 85° C, 4 GB eMMC flash, 1 GB DDR3, 802.11a/b/g/n/ac, Bluetooth 5.0, Ethernet CC-WMX-L87C-N How to Buy
SKU: CC-WMX-L97D-N Digi ConnectCore 6N SOM, i.MX6Quad, Industrial, 800 MHz, -40 to 85° C, 8 GB eMMC flash, 1 GB DDR3, 802.11a/b/g/n/ac, Bluetooth 5.0, Ethernet CC-WMX-L97D-N How to Buy
SKU: CC-WMX-J97C-N Digi ConnectCore 6N SOM, i.MX6Quad, Ext. Commercial, 1.2 GHz, -20 to 70° C, 4 GB eMMC flash, 1 GB DDR3, 802.11a/b/g/n/ac, Bluetooth 5.0, Ethernet CC-WMX-J97C-N How to Buy
SKU: CC-WMX-J98C-N Digi ConnectCore 6N SOM, i.MX6Quad, Ext. Commercial, 1.2 GHz, -20 to 70° C, 4 GB eMMC flash, 2 GB DDR3, 802.11a/b/g/n/ac, Bluetooth 5.0, Ethernet CC-WMX-J98C-N How to Buy
Single Board Computers (SBCs)
SKU: CC-SB-WMX-J97C-N Digi ConnectCore 6N SBC, i.MX6Quad, Ext. Commercial, 1.2 GHz, -20 to 70° C, 4 GB eMMC flash, 1 GB DDR3, 802.11a/b/g/n/ac, Bluetooth 5.0, Ethernet CC-SB-WMX-J97C-N How to Buy
SKU: CC-SB-WMX-L87C-N ConnectCore 6N SBC, i.MX6Dual, Industrial, 800 MHz, -40 to 85° C, 4 GB eMMC flash, 1 GB DDR3, 802.11a/b/g/n/ac, Bluetooth 5.0, Ethernet CC-SB-WMX-L87C-N How to Buy
Accessories
SKU: CC-ACC-LCDH-10 LCD Application Kit, including 10 in WXGA (high resolution) LCD panel CC-ACC-LCDH-10 How to Buy
Custom Design
Wireless Design Services
Digi wireless design services help companies solve business problems by embedding wireless technologies to create innovative M2M products		   Get Started
Specifications Digi ConnectCore 6
Application Processor NXP i.MX6Solo/DualLite/Dual/Quad with up to four Cortex-A9 cores
Industrial (800/850 MHz), Commercial (1/1.2 GHz) i.MX6 variants
32 KB I-Cache/32 KB D-Cache, up to 1 MB L2-Cache
Memory Up to 64 GB eMMC flash, up to 2 GB DDR3 (64-bit)
PMIC Dialog DA9063
Graphics Multi-stream-capable HD video engine with 1080p60 decode, 1080p30 encode and 3D video playback in HD in high-performance families; superior 3D graphics performance with up to 4 shaders at 200 Mt/s with OpenCL support; separate 2D and/or Vertex acceleration engines for UI support; stereoscopic image sensor support for 3D imaging
Security RNG, TrustZone, Ciphers, Security Cntrl, Secure RTC, Secure JTAG, eFuses (OTP)
Peripherals/Interfaces MMC 4.4/SD 3.0 x3MMC 4.4/SDXC, UART x5 (5 Mbps), MIPI HSI, S/PDIF Tx/Rx, I2C x3, SPI x5, ESAI, I2S/SSI x3, FlexCAN x2, MLB150 + DTCP, S-ATA and PHY (3 Gbps), USB2 OTG and PHY, USB 2.0 Host and PHY, USB 2.0 HSIC Host x2, PWM, 3.3 V GPIO, Keypad, PCIe 2.0 (x1 lane), HDMI and PHY, MIPI DSI, MIPI CSI2, 20-bit CSI, 24-bit RGB, LVDS (x2), RTC, External address/data bus, Watchdog, Timers, JTAG
External Bus 26-bit address / up to 32-bit data (multiplexed and non-multiplexed modes)
Ethernet 1 Gbit Ethernet + IEEE 1588 (MII10, MII100, RMII, RGMII)
Wi-Fi 802.11a/b/g/n/ac
Bluetooth Bluetooth 5.0
Operating Temperature Industrial: -40° C to 85° C (-40° F to 185° F) / Ext. Commercial: -20° C to 70 C° (-4° F to 158° F); depending on use case and enclosure/system design
Storage Temperature -50° C to 125° C (-58° F to 257° F)
Relative Humidity Relative Humidity 5% to 90% (non-condensing)
Radio Approvals US, Canada, EU, Japan, Australia/New Zealand, Brazil
Emissions / Immunity / Safety FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES-003 Class B, VCCI Class II, AS 3548, FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489-17, EN 55024, EN 301 489-3, Safety (IEC 62368-1)
Design Verification Temperature: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78
Vibration/Shock: IEC 60068-2-6, IEC 60068-2-27, HALT

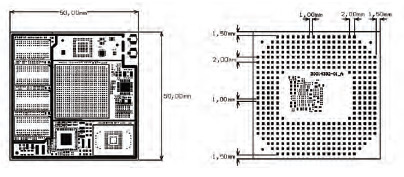

Mechanical Dimensions LGA-400, 2 mm pitch, fully shielded (heat-spreading)
Product Warranty 3-year
