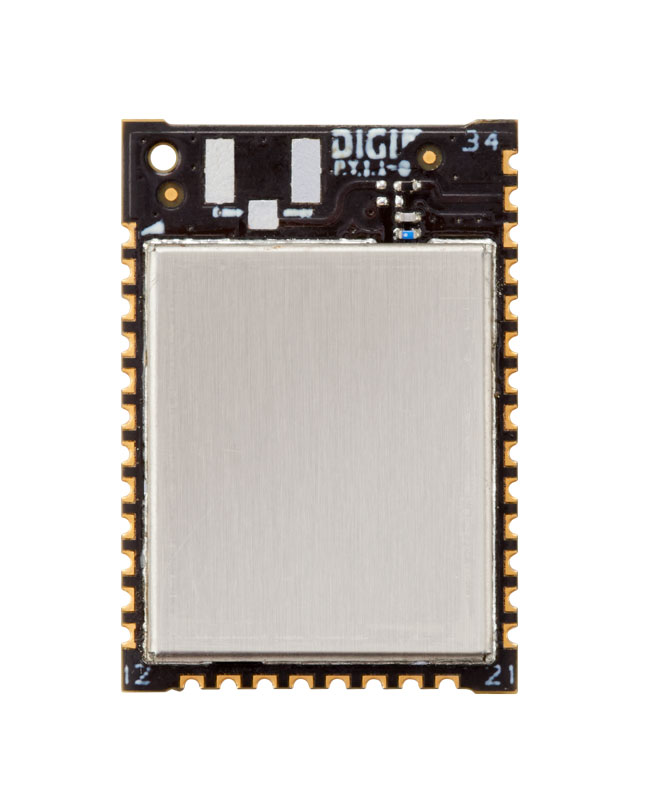

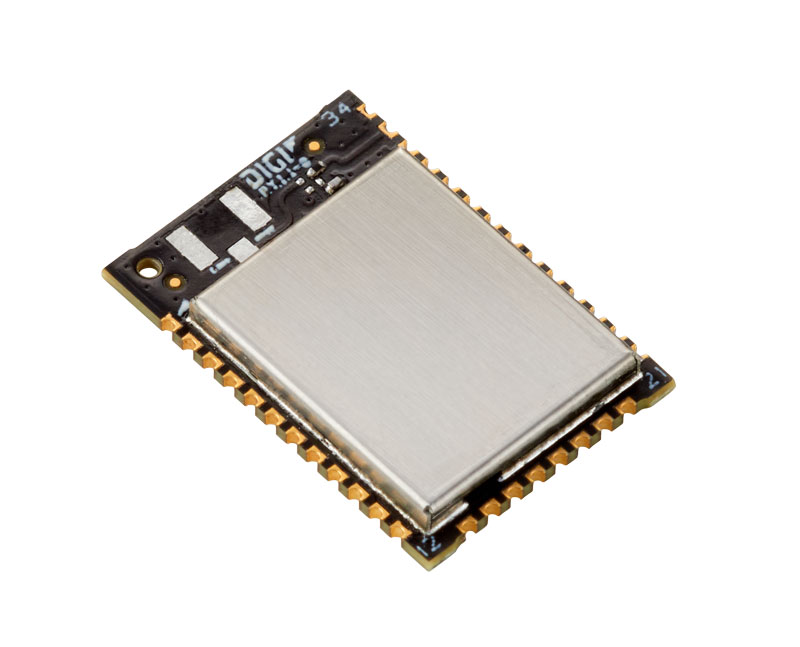

Digi XBee RR PRO, 2.4 GHz, DigiMesh, RF Pad Ant, MMT

Digi XBee RR PRO DigiMesh 2.4 RF Module

  • 2.4 GHz, DigiMesh®, RF Pad Ant, MMT
  • Memory: 1 MB flash, 96 kB RAM
  • Transceiver chipset: Silicon Labs EFR32MG SoC
  • Data rate: RF 250 Kbps, serial up to 1 Mbps
  • Indoor/urban range*: Up to 90 m (300 ft)
  • Outdoor/line-of-sight range*: Up to 3200 m (2 miles)
  • Transmit power: +19 dBm
  • Receiver sensitivity: −103 dBm normal mode
  • Bluetooth® performance:  Supports BLE 4.2 (slave only) and capable of interoperating with BLE 5.0 devices that support 1M PHY. Hardware is software upgradable to 5.0, but not yet enabled except payload extensions (future release). 1 Mbps, up to 15 m (49 ft) indoor/urban range*, up to 300 m (984 ft) outdoor/RF line-of-sight range*, +8 dBm transmit power, −95 dBm normal mode receiver sensitivity (1% per).
  • Serial data interface: UART, SPI
  • Operating temperature: −40 °C to 85 °C (−40 °F to 185 °F)
  • Dimensions (L x W x H): 13 x 19 x 2 mm (0.533 x 0.76 x 0.087 in)
  • Supply voltage: 1.72 to 3.8 V
  • Transmit Current: 195 mA at 19 dBm
  • Protocol: DigiMesh
*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
