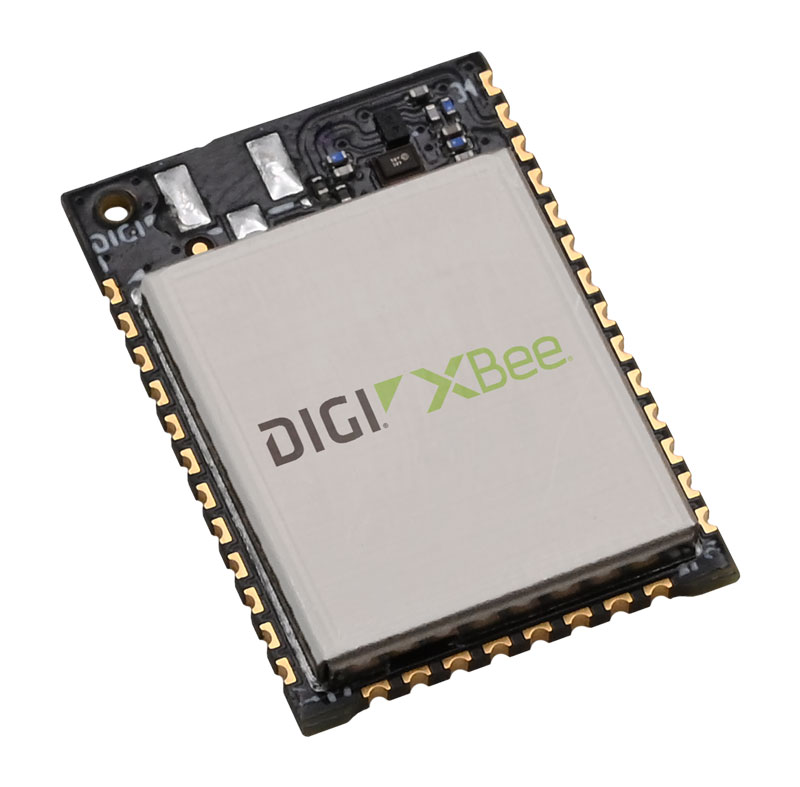

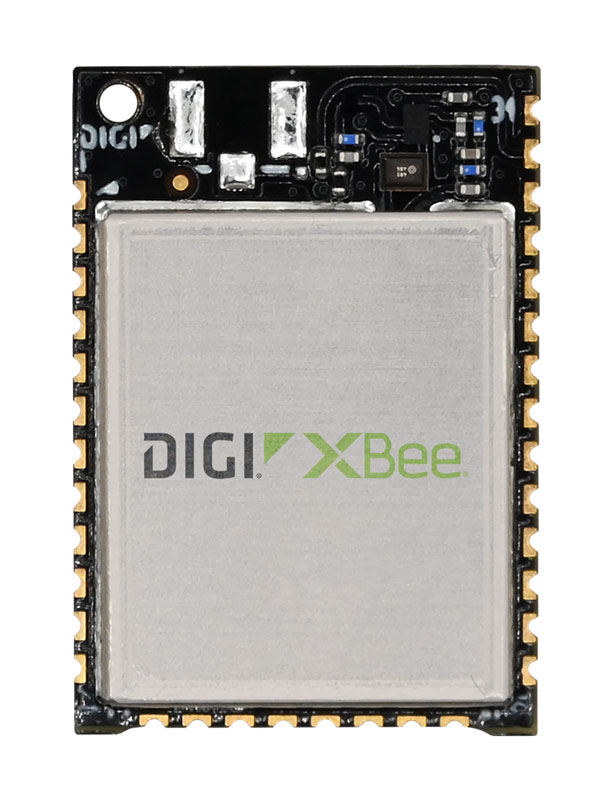

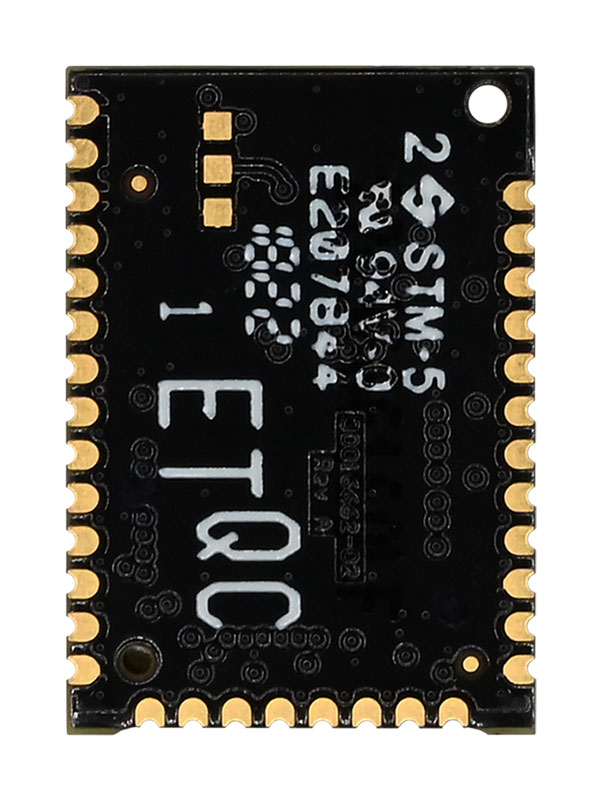

Digi XBee XR 868 MHz, DigiMesh, RF pad, MMT (NRND, see XB-8XR-DMRM-101)

Digi XBee XR 868

• Digi XBee XR 868 MHz, DigiMesh, RF pad, MMT (not recommended for new designs, see XB-8XR-DMRM-101)
  • Processor: EFR32FG13P231F512 transceiver at 40 MHz
  • Frequency band: 863 MHz – 870 MHz
  • Dimensions: 13 x 19 x 2 mm (0.533 x 0.76 x 0.087 in) for MMT
  • Weight: 1.2 g (0.042 oz) for MMT
• Features:
  • I/O: 13 digital I/O
  • Analog inputs: 4 channels 10-bit
  • Operating temperature: −40 °C to 85 °C (−40 °F to 185 °F)
  • Networking topologies: DigiMesh®, repeater, SX protocol compatible
  • Security: 256-bit AES encryption
• Performance:
  • RF data rate: 10 kbps or 80 kbps, software selectable
  • UART data rate: up to 921.6 kbps
  • SPI data rate: up to 5 Mbps
  • Line-of-sight range*: up to 14.5 km with 2.1 dBi antenna
  • Transmit power: up to 13 dBm ERP
  • Receiver sensitivity: −107 dBm at 80 Kbps, −112 dBm at 10 Kbps
• Power:
  • Supply voltage: 2.1 – 3.6 VDC
  • Transmit current: 76 mA
  • Receive current: 26 mA
  • Sleep current: 1.5 uA
