Digi IX30 — LTE Cat 4 AU, 3G/2G fallback, dual Ethernet, RS-232/422/485, GNSS



Part Number:

IX30-00A4

End-of-life
Recommended Replacements
IX30-00G4

Digi IX30

  • Cellular connectivity:
    • LTE Cat 4 AU/NZ
      • LTE Cat 4 — FDD: B1, B3, B5, B7, B8, B18, B19, B21, B28; TDD: B38, B39, B40, B41;
      • 3G: B1, B5, B6, B8, B9, B19;
      • GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
    • Connectors: (3) 50 Ω SMA (2x cellular, 1x GNSS);  center pin: female
    • SIM slots: (2) Mini-SIM (2FF)
    • SIM security: Secured in cellular module
    • GNSS: Protocol NMEA 0183 V3.0; acquisition time hot start 1 s; warm start 29 s; cold start 32 s; accuracy horizontal: < 2 m (50%), < 5 m (90%); altitude: < 4 m (50%), < 8 m (90%); velocity: < 0.2 m/s
  • Software and management:
    • Remote management: Digi Remote Manager®, SNMP v1/v2c/v3 (user installed/managed), SMS
    • Local management: Web UI (HTTP/HTTPS); CLI (Telnet, SSH, Serial)
    • Management / troubleshooting tools: FTP, SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog and SMTP; NTP/SNTP
  • Ethernet:

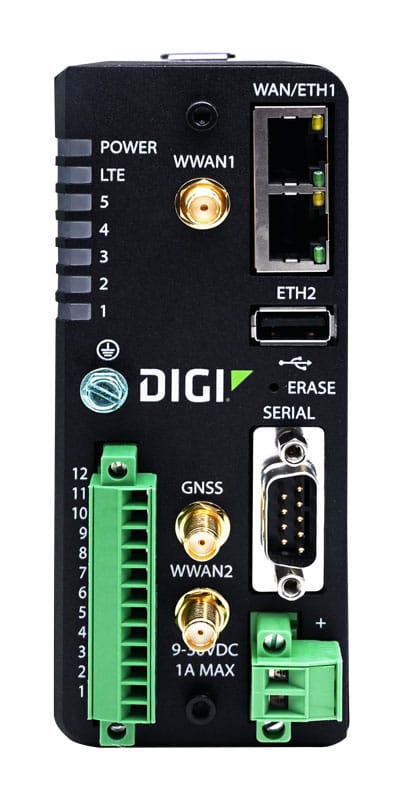

    • Ports: (2) RJ-45; 10/100 Mbps (auto-sensing)
  • Serial:
    • (1) DB-9 DTE
    • RS-232/422/285
    • Signal support: TXD, RXD, CTS, DTR, DCD, DSR, RI
    • Flow control: software (XON/OFF), hardware supported
  • I/O:

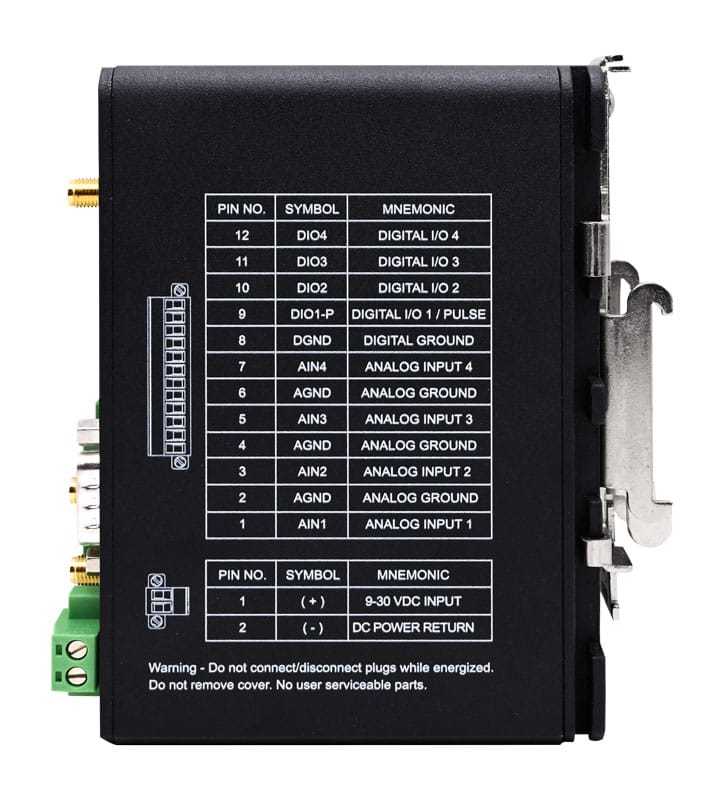

    • Connector: 12-pin screw down terminal block
    • Digital: 0 to 30 VDC, 200 mA max.; (4) I/O, software-selectable; pulse counter input
    • Analog: (4) analog I/O; 4 to 20 mA or 0-10 V, software-selectable; 12-bit resolution
  • USB:
    • Ports: (1) USB 2.0 Type A; 5 V 500 mA max
  • Physical:
    • Dimensions (L x W x H): 12.8 cm x 10 cm x 5.2 cm (5.04 in x 3.94 in x 2.05 in)
    • Weight: 0.5 kg (1.1 lb)

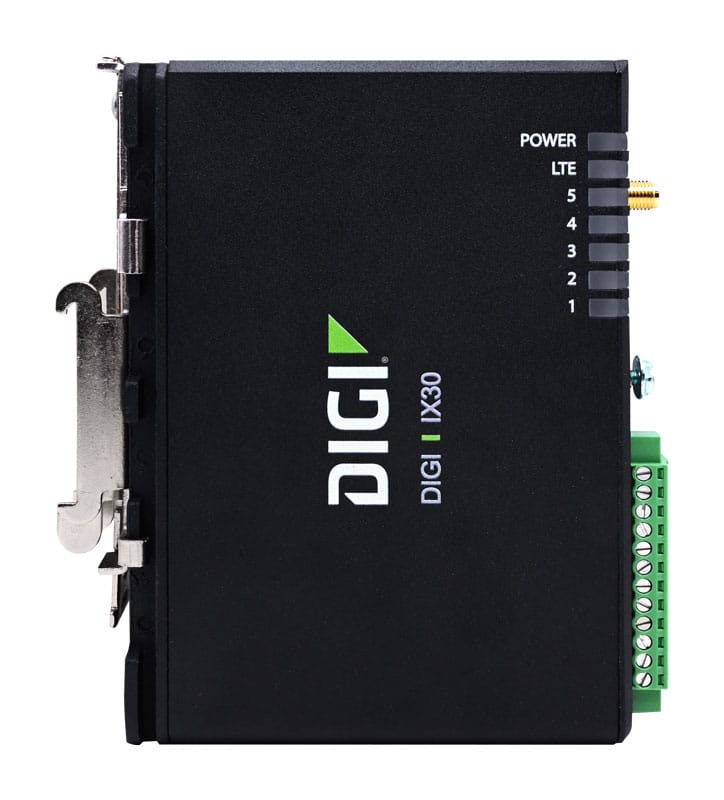

    • Status LEDs: Signal Strength (5), LTE, Power
    • Enclosure/Rating: Aluminum / IP30

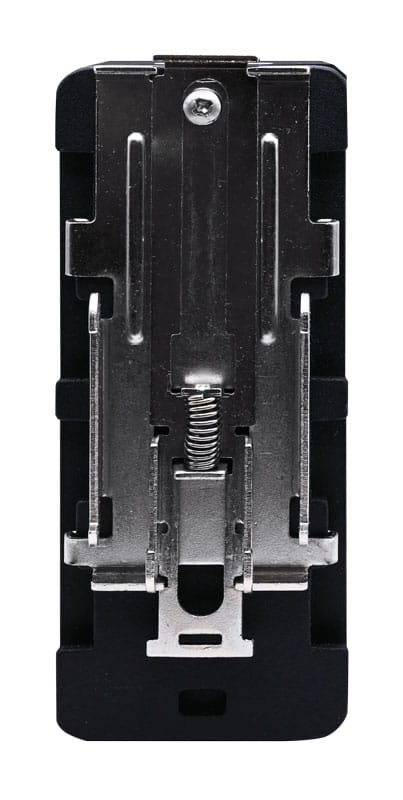

    • Mounting: DIN rail mount
  • Power requirements:
    • Power input: 9 to 30 VDC, 18 W min power source required
    • Power connector: Screw down removable terminal block
    • Power consumption: 1.5 W (light traffic flow), 3.5 W (peak data transmission); 1 W (low power mode, idle traffic, no serial/no Ethernet WAN)
  • Environmental:
    • Hazardous (Class 1 Div 2): Yes
    • Operating temperature: −34 °C to 74 °C (−29 °F to 165 °F); reduced cellular performance may occur above 60 °C (140 °F)
    • Storage temperature: −40 °C to 85 °C (−40 °F to 185 °F)
    • Ethernet isolation: 1.5 kV RMS
    • Serial port protection (ESD): 15 kV
    • Relative humidity: 5% to 95% (non-condensing)
  • Approvals:
    • Cellular: visit www.digi.com/resources/certifications for latest cellular certifications
    • Safety: Hazardous locations: ANSI/ISA-12.12.01-2015, CAN/CSA C22.2 NO.213-15; Ordinary locations: UL 62368-1, 2nd Edition, 2014-10-14; UL 62368: 2014, 2nd Edition; ATEX standards: Protection method II 3 G Ex nA IIC T4 Gc; EN 60079-0:2012+A11:2013, EN 60079-15:2010, DEMKO 15 ATEX 1574X Rev. 1
    • IECEX standards: US/UL/ExTR17.0077/00
    • Emissions / Immunity: CE, RED, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 322
    • Environmental: RoHS3
  • Product warranty: 3-year*
  • Available accessories: Accessories not included; view available accessories
    • IX30 Accessory Kit — PSU, antennas, Cat 6 Ethernet cable, GPS antenna: 76002113 (recommended)
    • Power supply (required, choose industrial extended temperature or commercial)
      • Power supply — 18 VDC, 1 A, wall mount level VI, industrial temperature, changeable plug tips, 2-pin combicon screw terminal plug: 76002104
      • Power supply — 18 VDC, 1 A, wall mount level VI, commercial temperature, changeable plug tips, 2-pin combicon screw terminal plug: 76002117
    • Antenna — 5G/LTE 600 MHz - 6 GHz, swivel, black: 76002114 (recommended / optional)
    • Antenna base — SMA, 1 m, RG174: 76000954 (recommended / optional)
    • Cable — UTP, Cat 6, 2 m (6 ft), black, flat patch cable: 76002106 (recommended / optional)
What's in the box
  • Digi IX30 — LTE Cat 4 AU, 3G/2G fallback, dual Ethernet, RS-232/422/485, GNSS
*Standard 3-year warranty upgradeable to 5 years with purchase of a Digi Remote Manager Premier 5-year subscription applicable to the product purchased only at the time of product purchase and with product registration at that time in Digi Remote Manager.
