The complete SCADA system in a box with sophisticated PLC-like automation control on the same platform that provides communications
The Z45 Remote Management System (RMS) comes complete with antennas, a robust power supply and a rugged enclosure built to withstand harsh environments. This all-in-one solution ensures reliable performance in challenging industrial conditions.
Automation Control is a software PLC type application based on an intuitive development environment. Monitoring and control applications are quickly deployed with a no-code, menu driven toolset that gets maintainable solutions to market faster and at a lower cost than legacy PLC approaches.
Z45 RMS Industrial Controllers interface with a wide range of sensors to bring data seamlessly and quickly into the system for processing. Standard support includes current and voltage for analog data, wet and dry contacts, Modbus RTU and TCP, and other vendor specific protocols.
The Z45 controller securely and efficiently moves data over the network. The controllers are provisioned for use on domestic and international carriers, with cellular, Ethernet and Wi-Fi communication options available.
Whether the Z45 RMS is operating as a communications device or as an application controller, Digi Axess is available to provide a detailed visualization of network, platform, and application operations.
For specialized applications requiring custom coding the Z45 RMS supports a downloadable cross compile development environment, a tested source distribution, and a fully documented tool chain.
Features and Benefits
- Integrated interfaces for analog, digital, hex and pulse information processing
- Modbus client and server configurations
- Built-in digital and analog inputs, digital outputs
- Network connectivity over USB, Ethernet and serial interfaces
- On-board dashboard display: gauges, indicators and charts
- Self-provisioning devices report to Digi Axess for complete visibility of assets
- LTE coverage on all bands for domestic and international carriers with 3G HSPA fallback
- Automatic carrier provisioning and dual-SIM failover support

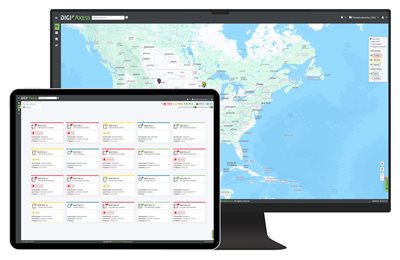

Digi Axess
Your Gateway to Cloud and Edge-Based Remote Monitoring and Control Solutions
Elevate your monitoring and control capabilities with Digi Axess. Whether you prioritize edge-based control or the flexibility of cloud-based monitoring, Digi Axess serves as your unified platform, offering an intuitive interface to streamline data management for enhanced operational efficiency.
Unlock simplified automation control at the edge, with our built in functions and logical operators to enable:
- Dynamic scheduling: customize tasks for peak efficiency using real-time data
- Conditional actions: trigger tailored responses based on complex conditions
- Adaptive control: optimize performance and adjust parameters based on feedback

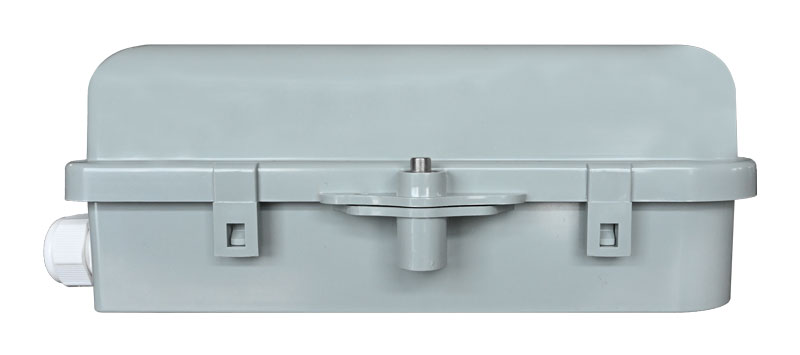

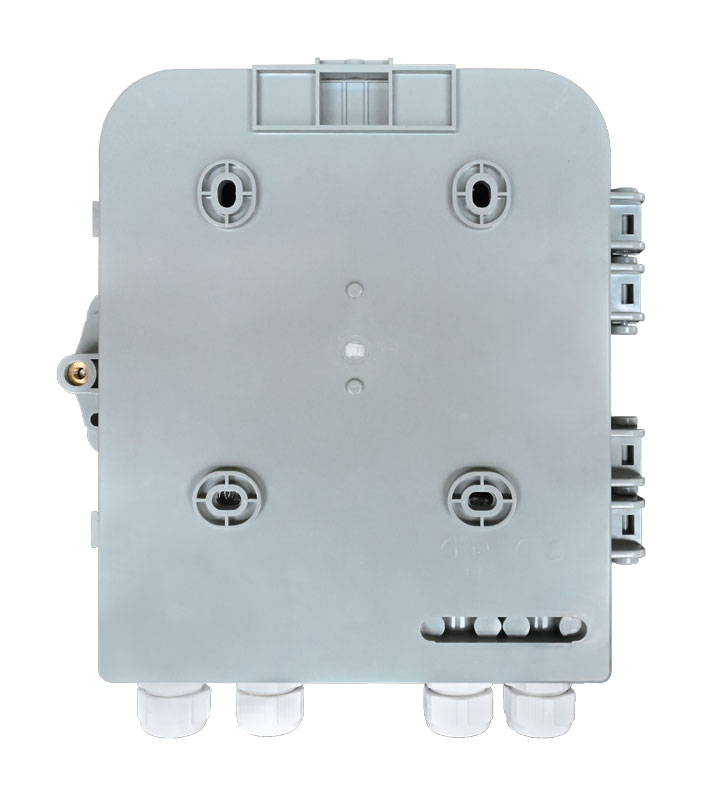

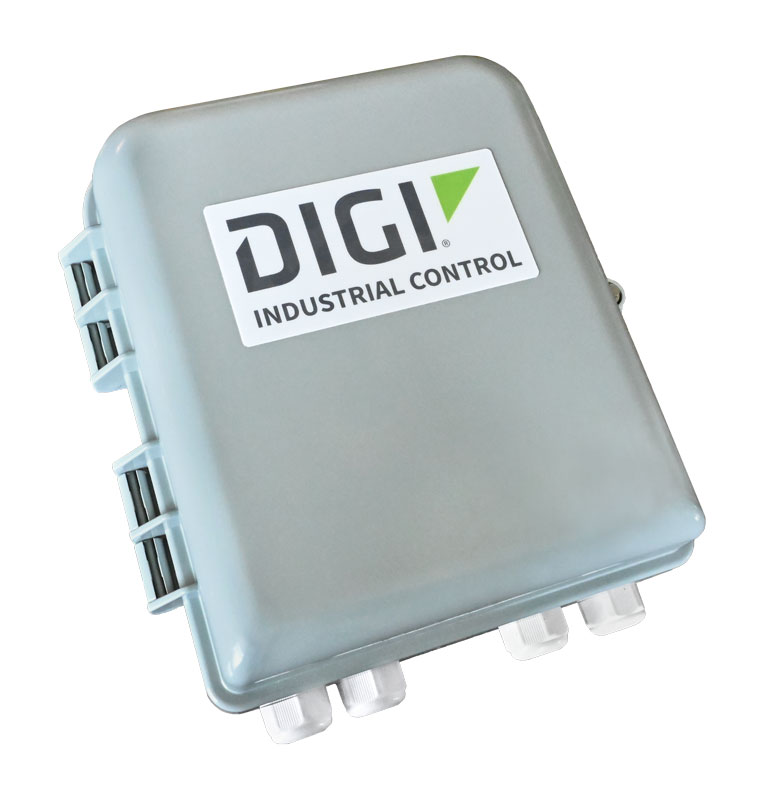

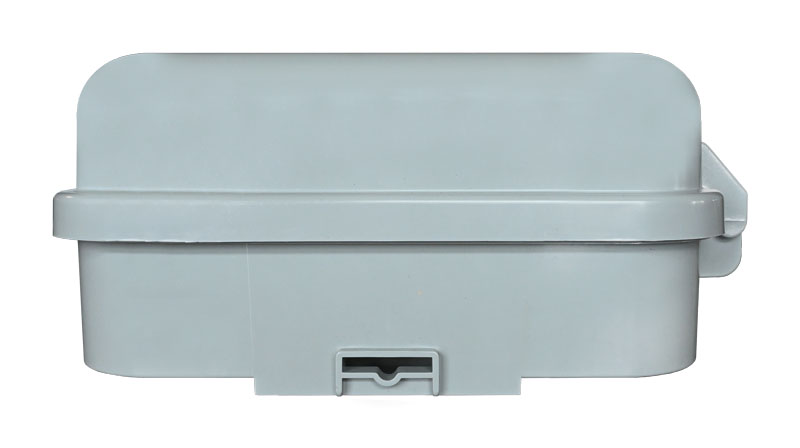

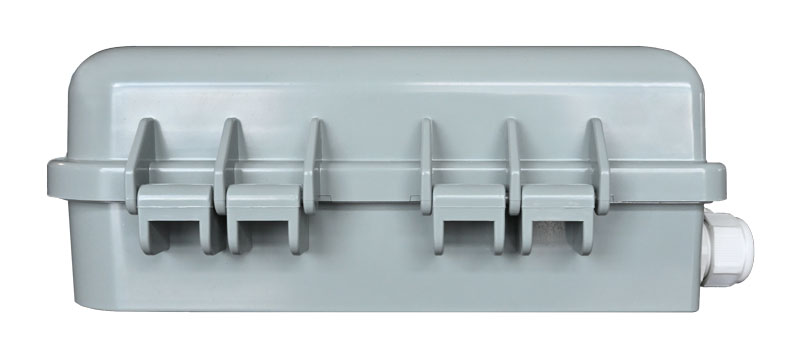

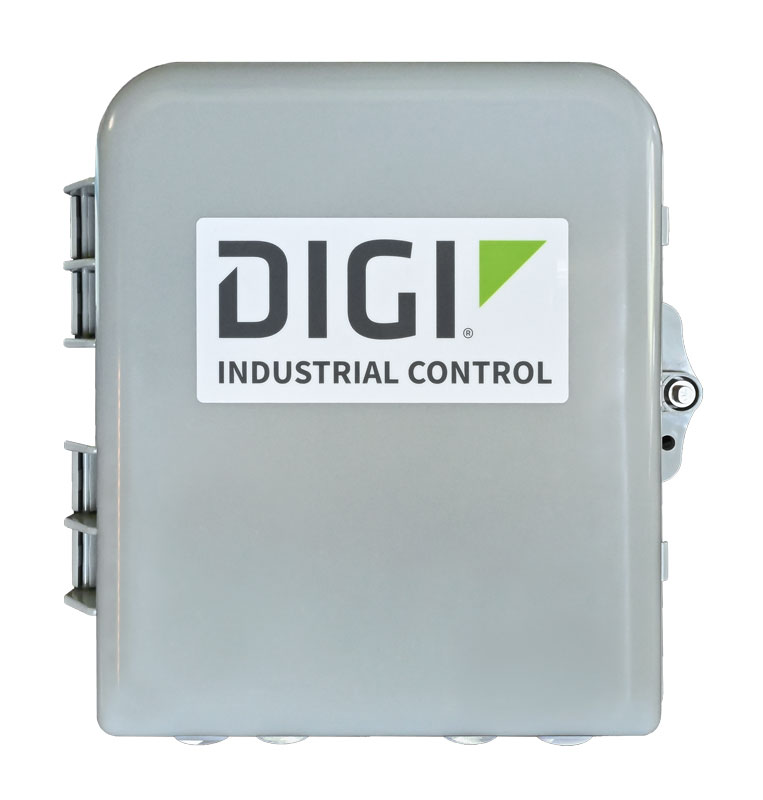

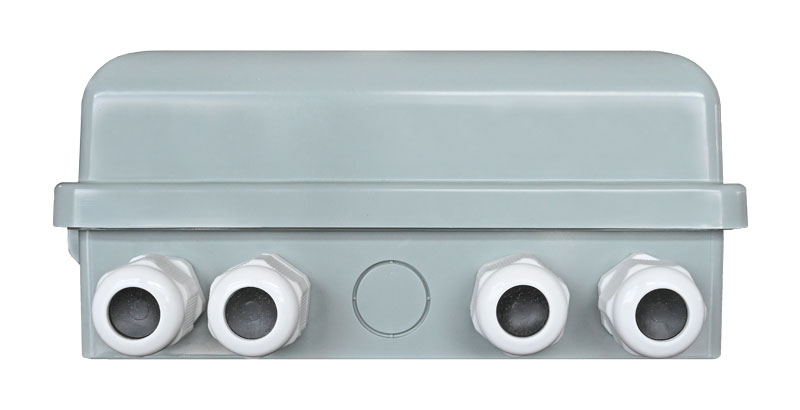

Z45 RMS Industrial Controller NEMA Enclosure
- NEMA enlosure features:
- Waterproof and UV stable
- RF transparent for wireless devices
- Gasketed lid with dual latches
- Tamper-proof locking screw with key and provision for padlock
- Material / color: Polycarbonate + ABS
- Dimensions: Outer: 276 mm x 252 mm x 106 mm) 10.9 x 9.2 x 4.2 in); Inner: 191 mm x 165 mm x 83 mm (7.5 in x 6.5 in x 3.3 in)
- Weight: 0.6 kg (1.5 lb)
- Ratings / flame rating: Meets NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66
- Included power supply: Power supply — DIN mount; out: 15 W, 24 VDC 0.6 A; in: 100 - 240 VAC 50/60 hz
- Included cable glands: (4) M23 x 1.5
- Included antennas: (2) Antenna mounted inside enclosure (multiband, 4G / 3G / 2G, GPS, flex/strip, SMA)
- Included mount kit: Mount kit — DIN rail
Z45 Remote Management System (RMS) Industrial Controller
- Integrated interfaces for analog, digital, hex and pulse information processing
- Cellular technology:
- LTE bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41; 3G: B1, B2, B3, B4, B5, B8
- Multi-carrier, auto-configuration
- Dual-SIM (2FF)
- DL MIMO/Rx diversity support
- (1) 50 Ω SMA (center pin: male)
- Approvals:
- FCC, IC, CE, PTCRB
- Verizon, AT&T, T-Mobile, Sprint, US Cellular, Bell, Rogers, Telus; visit product certifications for latest cellular certifications
- Position location: GPS, GLONASS
- Host interfaces:
- 10/100 Ethernet RJ-45
- (1) RS-232 (terminal block)
- (1) RS-485 (terminal block)
- (1) Full-speed USB (Type A)
- (1) High-speed micro-USB OTG
- Input / output:
- (4) User configurable, digital/analog inputs (0 - 5 V / 4 - 20 mA)

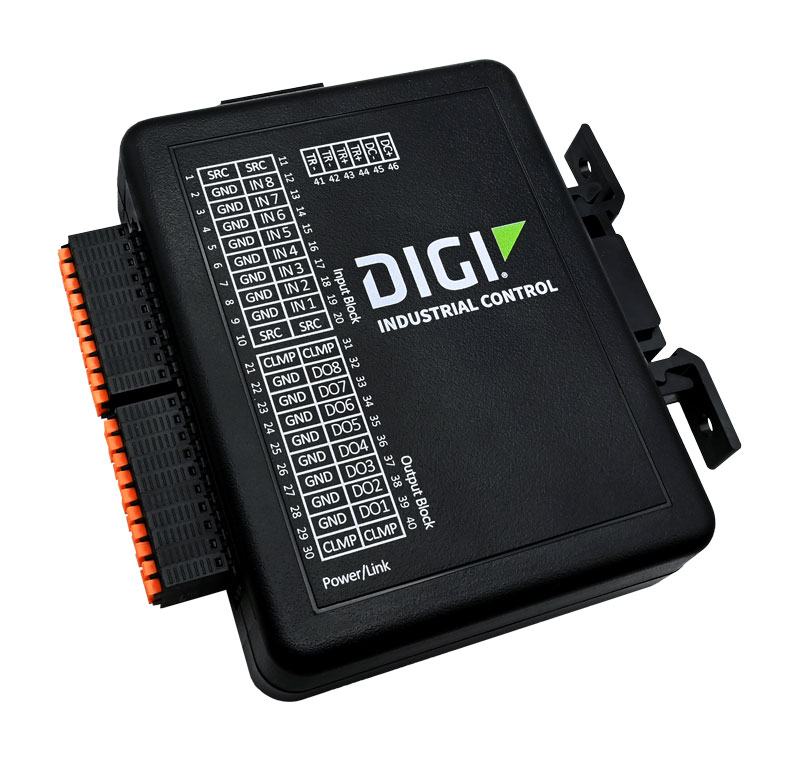

- (2) Digital outputs (expandable with Z1201 I/O Module)
- Memory:
- 128 MB DDR2 RAM
- 256 MB SLC NAND flash
- (1) MicroSD Slot (externally accessible)
- Platform:
- Linux 4.xx operating system
- Atmel ARM9 processor
- Web Manager 2.0
- Digi Axess
- Automation application
- Power: 9 - 24 VDC input, 190 mA consumption (typical - Ethernet not connected, varies with signal level)
- Operating temperature: −30° to 70° C (−22° to 158° F)
- Dimensions: 13.92 x 11.99 x 3.68 cm (5.48 x 4.72 x 1.45 in)
- Warranty: 3-year standard warranty
- Available accessories:

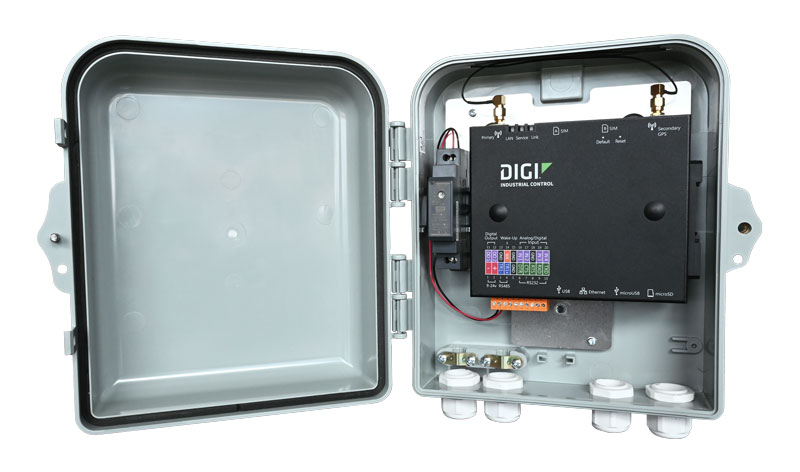

What's in the box?
- Z45 Remote Management System (RMS) Industrial Controller with NEMA enclosure — cellular
- Included power supply: Power supply — DIN mount; out: 15 W, 24 VDC 0.6 A; in: 100 - 240 VAC 50/60 hz
- Included cable glands: (4) M23 x 1.5
- Included antennas: (2) Antenna mounted inside enclosure (multiband, 4G / 3G / 2G, GPS, flex/strip, SMA)
- Included mount kit: Mount kit — DIN rail
*Accessories not included with Z45 Industrial Controller models unless otherwise noted.
